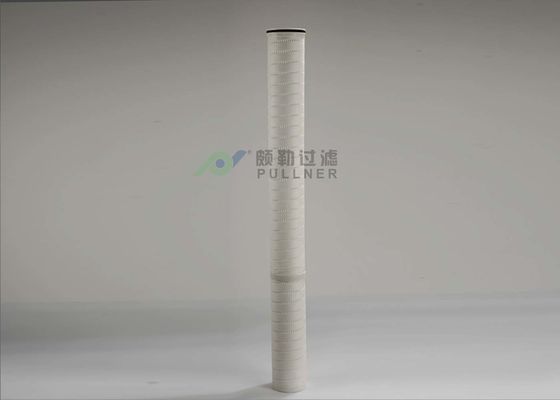

Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm

Certification
China Shanghai Pullner Filtration Technology Co., Ltd. certification
China Shanghai Pullner Filtration Technology Co., Ltd. certification
Customer Reviews
We use filters in one of Turkey’s largest food factory. We use it as a reverse osmosis pre-filter, we are very satisfied with your product, Miss Lucy helped us a lot, provided very quick returns to our problem. We will use it in our new factory in Romania, I also recommend it to our customers who ask.

—— Jose

PULLNER are good business partner. Nice products with reasonable price, best service, we cooperated more than 5 years.

—— Nisa

I'm Online Chat Now

Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm

Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm
Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm
Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm

Large Image :  Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm

Product Details:
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: ISO
Model Number: PHFL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box after poly bag. 4pcs per carton.
Delivery Time: 5-8 days
Payment Terms: T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability: 1500pcs per week

Replace PALL hFU660UY045 1micron To 100micron Power Plant Filter Cartridge Operating filter element diameter 6"/152mm

Description
OD: 6" (152.4mm) Material: PP, PET
Length: 20", 40", 60" Micron: 1~100um
High Light:

industrial cartridge filters

,

sediment filter cartridge

Replace PALL HFU660UY045

1micron To 100micron

Power Plant Filter Cartridge Operating Filter Element Diameter 6"/152mm



Performance Specifications



Dimensions

OD 6" (152mm)
Length 20"(508mm), 40"(1016mm), 60"(1524mm)



Material of Construction

Model Filter Medium Support/Drainage End Caps Seals Material
PP Deep Pleated PP Polypropylene Glass Fiber Reinforced Polypropylene



NBR, Silicone, EPDM, Viton



PM PP Melt Blown / Glass Fiber Reinforced Polypropylene



Filter Performance

Micron 1um, 5um, 10um, 15um , 20um, 40um, 70um, 100um
Max. operating temperature: 82℃

Max. operating differential pressure

(Inside to outside flow direction)

3.44bar@82℃
Suggestion pressure for filter replacement 2.5Bar@20℃
Max. flow rate 40": 70m3/h
60": 110m3/h
Filtration direction Inside to outside



General Description

PHFL series Power Plant Filter Cartridge is made of diameter 6"(152mm), single open end, without inner core, pleated type with inside to outside flow direction. All connection use thermal welding. Large diameter, big filtration area provide high flow rate, highly efficient particle filtration in RO pre-filtration system. Widely used in seawater desalination and power plant condensate polishing water RO pre-filtration.



Application

Food and Beverage: Process water;

Petrochemical: Various solvents, chilled water, brine filtration;

Power Plant: supplementary water, condensate water, coolant;

General Purpose: RO Pre-filtration, all kinds process water purification;

Industrial filtration: Process fluid, process water, condensed water, coolant, wastewater treatment;



Features and Benefits

* 40” outer cage is one piece, with high strength can withstand one adult weight, ensure big effective filtration area, long life;

* Inside to outside flow direction keeps all of the contamination catched;

* Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance.

* Easy installation save, less cartridge change out help customers save the labor cost;

* Integral support, high strength, high dirt holding capacity, long service life;

* Single cartridge could achieve flow rate 110m3/h;

* Filtration systems are 50% smaller than typical size system;

* Filtration efficiency reach 99.8%;
