Product Details:
|
| Material: | PES PVDF Nylon | Diameter: | 2.7" |
|---|---|---|---|
| Micron: | 0.1um, 0.22um, 0.45um, 0.65um | Length: | 10", 20", 30", 40" |
| High Light: | drinking water filter,food grade filter |
||

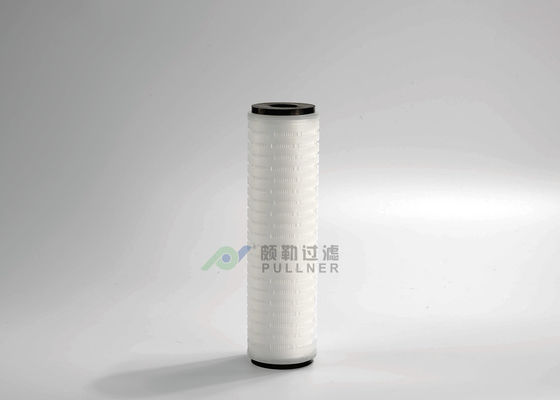

PES PVDF Nylon Food and Beverage Water Filter FDA Membrane Pleated Filters
General Description
The membrane filter element is made of imported PES PVDF Nylon membrane and imported non-woven fabric and mesh as the support layers. The filter outer cage, center core and end cap are formed by thermal welding technology, no adhesive used. They are produced in clean room, 100% integrity tested and flushed with high purity water. Suitable for filtration of weak acid/alkali liquids and high purity water.
Applications
Pharmaceuticals
Food and beverage
Semiconductor
Features
Possessing better performance of high temperature-resistance, acid and base resistance;
Hydrophilic membrane with high flow;
Non-fiber releasing according to pharmaceutics and food industry requirements;
100% integrity tested;
Flushed with ultrapure water;
Dimensions
| Outer diameter | 2.7" (69mm) |
| Length | 10", 20", 30", 40" |
Material of Construction
| Model | Membrane Pleated Filter |
| Filter Medium | PES PVDF Nylon |
| Support/Drainage | Polypropylene |
| Center core/Outer Cage/End Caps | Polypropylene |
| Seals Material | NBR, Silicone, EPDM, Viton |
Filter Performance
| Micron | 0.1um, 0.22um, 0.45um, 0.65um |
| Length | 10", 20" |
| Interception rate | 100%, 107CFΜ/cm² |
| Max. operating temperature | 80℃ |
| Max. operating differential pressure | 0.42Mpa at 25℃ |
|
Max. operating differential pressure (Reverse direction) |
0.21Mpa at 25℃ |
| Applicable PH | 1-14 |
