Product Details:
|
| Diameter: | 6.5 Inches | Length: | 1026mm |
|---|---|---|---|
| Suggestion Flow Rate: | 18-25 Cube Meter Per Hour | Max. Flow Rate: | 110 Cube Meter Per Hour |
| Micron: | 1-100 Um | Material: | Polypropylene |
| High Light: | PHFM Polypropylene Filter Cartridge,110m3/H Polypropylene Filter Cartridge,110m3/H pp filter cartridge |
||
General Description

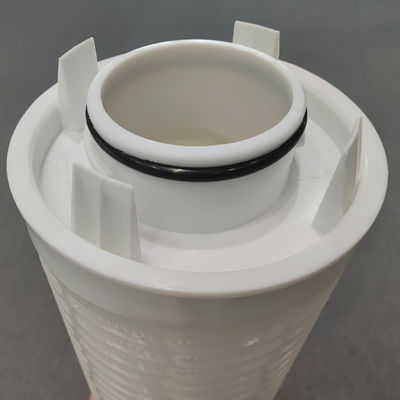

PHFM High Flow Filter Cartridge is made of diameter 6.5’’(165mm)and pleated design with big flow area dirt holding capacity. It can meet different flow requirements, with a wide range of chemical compatibility, can be applied to various fields.
Application
Power plant condensation water filtration;
RO Pre-filtration, desalination pretreatment;
Biopharmaceutical industry pharmaceutical raw materials solvents, water filtration;
Food and Beverage process water treatment ;
Material Structure
| Filter Material |
PP:Deep Pleated PP/ Melt PP |
FO:Organic Fiber | GF:Glass Fiber/Polyester |
|
Support/Diversion |
PP | Organic Fiber | Polyester |
| End Cap | Fiberglass reinforced polypropylene | Fiberglass reinforced polypropylene | Fiberglass reinforced polypropylene |
Operating Characteristic
| Maximum Temperature |
PP:82°C FO:120℃ GF:121℃ |
| Maximum Differential Pressure |
PP:3.44bar / 21°C FO:3.44bar / 120°C GF:3.44bar / 121°C |
Design Parameter
|
Size (Diameter*Length) |
Design Flow (m3/h) |
Maximum Flow (m3/h) |
Filter Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
