Product Details:
|
| OD: | 67-69mm | Length: | 10", 20", 30", 40" |
|---|---|---|---|
| Material: | PP/ PES / PTFE | Filtration Rating: | 0.1um, 0.22um, 0.45um, 1um, 2um, 5um, 10um, 20um, 30um, 50um, 60um |
| Product Name: | PP Filter Cartridge | Application: | Water Filtration In RO Pre-filtration |
| Flow Rate: | 1.2m³/h/10" | ID: | 28-30mm |
| Original: | Shanghai | ||
| High Light: | RO Pre Pleated Filter Cartridge,Water Pleated Polyester Filter Cartridge,0.1um PP Pleated Filter |
||
Micron 0.1um 0.22um 0.45um length 10'' 20'' PP Filter Cartridge For Water RO Pre Filtration
General Description
PLZ Series Pleated Filter Cartridge is constructed of polypropylene material, providing micron rating from 0.1um to 60um. Has high and stable filtration efficiency, can be used for various demanding filtering environment.
Applications:
* General purpose: RO Pre-filtration, all kinds process water purification;
* Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating solution
* Food and Beverage: Alcohol, Beverage, Pure water.
* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
Features and Benefits:
Excellent Chemical compatibility, high flow, low differential pressure, long service life;
Depth pleated membrane, can meet various application areas;
Graded pore density provide high dirt holding capacity;
Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
Absolute rating, bubble point test compliance with GMP certification;
Material structure
| Filter Media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| O-ring & gaskets seals | NBR, Silicone, EPDM, Viton |
Specifications
| Item | Technical Parameters |
| Micron | 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration area | 0.4-0.7m² |
| Outside diameter | 68.5mm |
| Max. operating differential pressure | ΔP≤0.35MPa at25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Flow rate | 1.2m³/h/10" |
Performance
| Max. operating temperature | 80℃ |
| Max. operating pressure | 4bar/21℃ |
| 2.4bar/80℃ | |
| Mosit-heat sterilization | 121℃/30min |
| Flowing hot water sterilization | 85℃/30min |
Why choose us?
Pullner has been in the filtration industry for more than 20 years and has very rich experience in solving filtration solutions in various industries. We can provide complete filtering solutions according to your requirements. You can send us your detailed requirement any time.
Pullner has a completely closed and clean workshop, advanced production equipment and production technology. The modern aseptic laboratory ensures the quality of the products and makes our filter elements have a long service life.

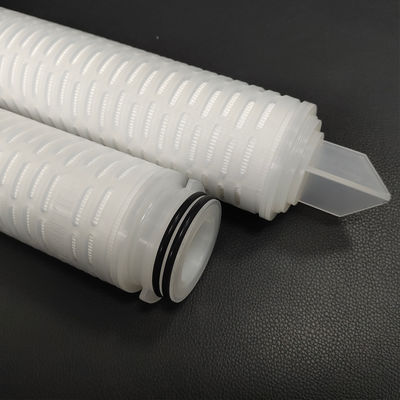

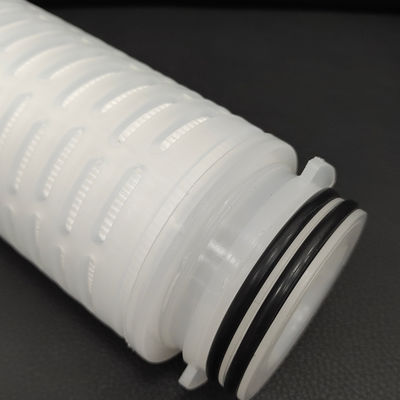

Products picture
Our Laboratory
