Product Details:
|
| Mosit-heat Sterilization: | 121°C/30min | Maximum Operating Differential Pressure: | 4bar@25°C,2.6bar@25°C |
|---|---|---|---|
| Outside Diameter: | 68.5mm | Flowing Hot Water Sterilization: | 85°C/30min |
| Filtration Area: | 0.4-0.7m³ | Maximum Operating Temperature: | 4bar@25°C,2.6bar@25°C |
| Manufacture Place: | Shanghai | Brand: | Pullner |
| High Light: | High Density PP Pleated Filter Cartridge,Reagents Pleated Filter Cartridge,PP Filter Cartridge 68.5mm |
||

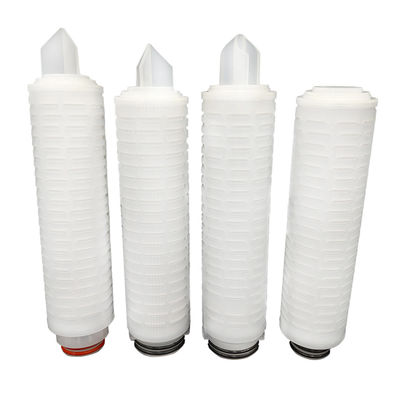

High-denstity Pleated PP Filter Cartridge for high-purity reagents Filtering
PPH filter element is a tubular filter element made of non-toxic and odorless polypropylene particles, which are heated and melted, sprindried, traction and accepted for forming. If the raw material is mainly polypropylene. It can be called meltblown filter element. Not only in water purification for use in large quantities. It also has excellent chemical compatibility and is suitable for filtration of strong acids, bases and organic solvents. Strong dirt holding capacity, long service life and low cost.
Material Construction
| Filter Media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End Caps | Polypropylene (PP) |
| Seal Material | Silicone, NBR, Viton, EPDM |
Filter Performance
| Micron | 0.1-20um |
| Filter area | 0.5-0.6m² |
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Dfferential Pressure | 4bar@25°C 2.6bar@25°C |
|
Flowing hot water sterilization |
85°C/30min |
Filtration Efficiency
| PPH | ＞95% | ＞98% | ＞99.8% | ＞99.9% |
| 0.3μm | 0.15 | 0.22 | 0.3 | 0.5 |
| 0.5μm | 0.22 | 0.3 | 0.5 | 0.65 |
| 0.65μm | 0.45 | 0.5 | 0.65 | 0.8 |
| 0.8μm | 0.5 | 0.65 | 0.8 | 1.0 |
| 1.0μm | 0.65 | 0.8 | 1.0 | 3.0 |
| 3.0μm | 1.0 | 2.0 | 3.0 | 5.0 |
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
