Product Details:
|
| Brand: | Pullner | Filter Certification: | ISO9001 |
|---|---|---|---|
| Filtration Area: | 7㎡/ 40" | OD: | 6"(152.44mm) |
| Filter Flow Rate: | High | Max Flow Rate: | 40":70m³/h;60":110m³/h |
| Suggestion Pressure For Filter Replacement: | 2.5bar | ||
| High Light: | EPDM Seals High Temperature Filter Elements,ISO9001 High Temperature Water Filter,70m3/H Temperature Filtration Unit |
||

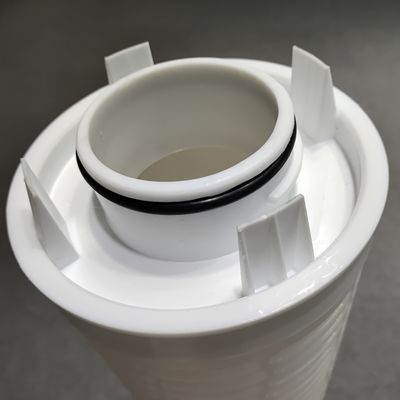

Pullner's High-Temperature Filtration System is designed for water purification. This high temperature filtration unit comes with an OD of 6"(152.44mm), a filter flow rate of high, and a suggestion pressure for filter replacement of 2.5bar. It also has a maximum flow rate of 40":70m³/h;60":110m³/h. This high temperature water purifier is designed to provide safe and clean drinking water for all your needs. It is easy to install and use, making it ideal for residential, commercial, industrial, and other applications. With its high-temperature filtration system, this product is the perfect choice for any water filtration needs. It is highly efficient and effective, ensuring that you get the best quality of water for your needs.
Material Construction
| Filter Media | Support/Drainage | End Caps | Seals Material |
|
Deep Pleated Polypropylene |
Polypropylene |
Glass Fiber Reinforced Polypropylene |
NBR,EPDM,Viton |
| Glass Fiber/Polyester | Glass Fiber/Polyester |
Glass Fiber Reinforced Polypropylene |
Filter Performance
| Micron | 0.1-100um |
| Max. operating temperature | 82℃ |
| Max. operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
|
6"*20" |
15 |
40 |
2.6 |
|
6"*40" |
30 |
80 |
5.2 |
|
6"*60" |
45 |
120 |
7.8 |
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
High Temperature Water Filter is packaged and shipped in a secure cardboard box. The box is padded with bubble wrap and foam to protect the filter from any possible damage during transit.
The package is labeled with the product name and other relevant information, including necessary warnings and instructions for safe handling.
