Product Details:
|
| OD: | 65mm, 69mm, 70mm | Length: | 70"(1778mm), 60"(1524mm) |
|---|---|---|---|
| Material: | PP | Filtration Rating: | 1um, 2um, 4um, 5um, 10um |
| Flow Rate: | 3.5m³/h/70" | Max. Operating Temperature: | 80℃, 120℃ |
| MOQ: | 1 Piece | Sample: | Free |
| High Light: | water polishing filter,wound water filter cartridges |
||

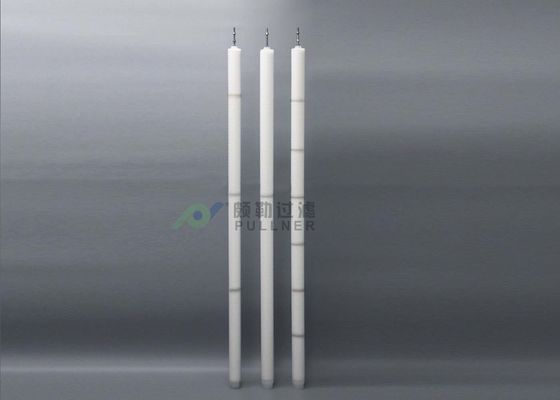

Condensate Backwash Filter Element Length 1778mm PP Material Replace Pall Graver
Performance Specifications
| Material | Filter Medium | Polypropylene |
| Center Core | Reinforced Polypropylene | |
| Dimensions | Outside Diameter | 65mm, 69mm, 70mm |
| Length | 70"; Customized on request | |
| Connection thread size | 1 1/2"-12, M33x1.5; (Customized on request) | |
| Screw size | M6, M8, M10, 3/8; (Customized on request) |
Filter Performance
| Micron | 1um, 5um(operating filter), 10um(start-up filter) |
| Filter area | 6.5m² |
| Max. Operating Temperature | 85℃ |
| Max. Operating Differential Pressure | 2.8bar, 65℃c |
| Design Flow Rate | 3.9m³/h～4.5m³h |
General Description
PHFZ Series pleated filter cartridges use pleated type, all connection use thermal welding, multi-backwashing, designed specifically for iron removal in condensate water of power generation. Different precisions used as start-up and operating filter elements.
Features and Benefits:
Multi-backwashing with water or gas;
Complete polypropylene structure and extensive application of chemical;
Easy installation save, less cartridge change out help customers save the labor cost;
Application:
Pre-filter to prevent premature fouling of RO membranes;
Used in boiler condensate for both nuclear and fossil plants, heat recovering steam generators, pre-RO and combined cycle plants.
