Product Details:
|
OD: | 65mm, 69mm, 70mm | Filter Media: | PP |
---|---|---|---|
Removal Rating: | 1um, 2um, 5um, 10um, 15um, 20um | Length: | 70", 60" |
Highlight: | industrial cartridge filters,micron filter cartridge |

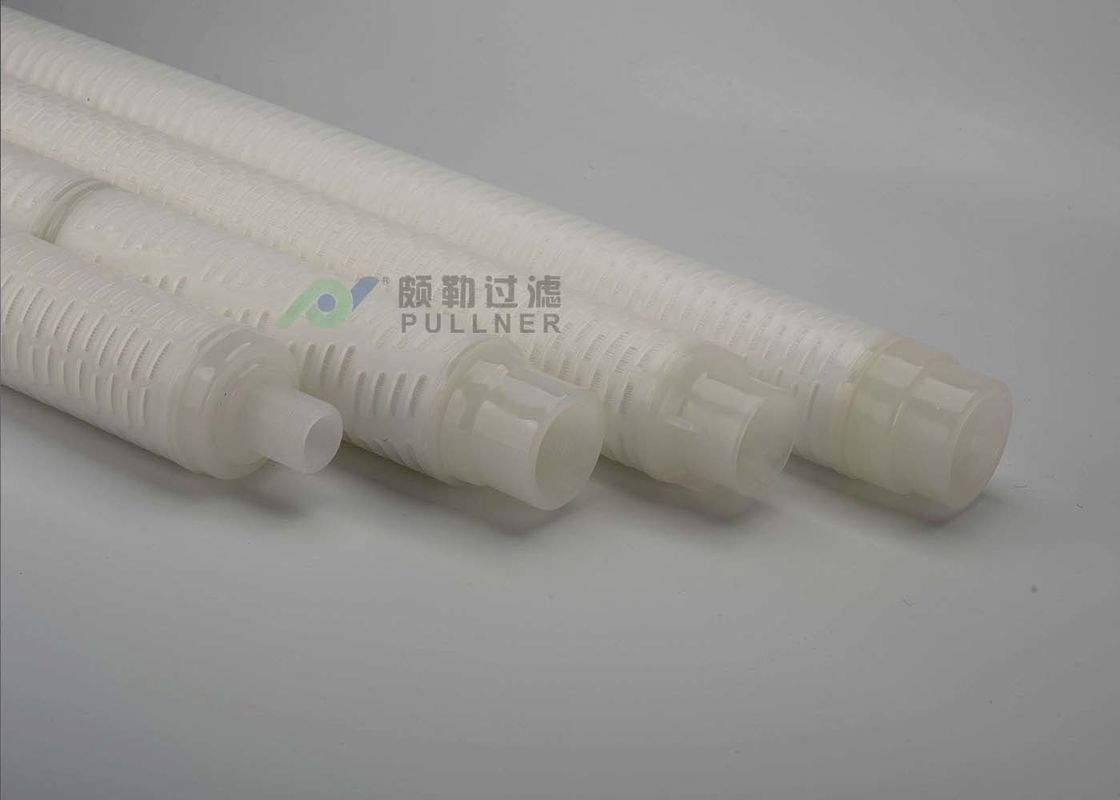

Diameter 2.7" Length 70" PP Pleated Filter Element Backwashing Iron Remove Replace PALL/GRAVER
Specifications
Material | Filter Medium | Polypropylene |
Center Core | Reinforced Polypropylene | |
Dimensions | Outside Diameter | 65mm, 69mm, 70mm |
Length | 70"; Customized on request | |
Connection thread size | 1 1/2"-12, M33x1.5; (Customized on request) | |
Screw size | M6, M8, M10, 3/8; (Customized on request) |
Filter Performance
Micron | 1um, 5um(operating filter), 10um(start-up filter) |
Filter area | 6.5m² |
Max. Operating Temperature | 85℃ |
Max. Operating Differential Pressure | 2.8bar, 65℃ |
Design Flow Rate | 3.9m³/h~4.5m³h |
General Description
PHFZ Power Plant Filter Cartridge use pleated type, thermal melting welding, multiple times backwashing, designed for iron removal in condensate water of power generation. Different precisions used as Start-up and operating filter elements. Its structure can be divided into three types: 7 parts, 2 parts and 4 parts. The 2parts type is welded of 40" and 30", the only one filter with 69mm diameter and integral outer support in domestic.
Features and Benefits
Multi-backwashing with water or gas;
Complete polypropylene structure and extensive application of chemical;
Easy installation save, less cartridge change out help customers save the labor cost;
Integral support, high strength, high dirt holding capacity, long service life;
Different precision can be used as start-up and operating filter element for condensate systems.
Applications
Pre-filter to prevent premature fouling of RO membranes;
Used in boiler condensate for both nuclear and fossil plants, heat recovering steam generators, pre-RO and combined cycle plants.
