Product Details:
|
| OD: | 65mm, 69mm, 70mm | Length: | 70"(1778mm), 60"(1524mm) |
|---|---|---|---|
| Filter Medium: | PP | Filtration Rating: | 1um, 2um, 4um, 5um, 10um |
| Flow Rate: | 3.5m³/h/70" | Max. Operating Temperature: | 80℃, 120℃ |
| High Light: | water polishing filter,iron removal filter cartridge |
||

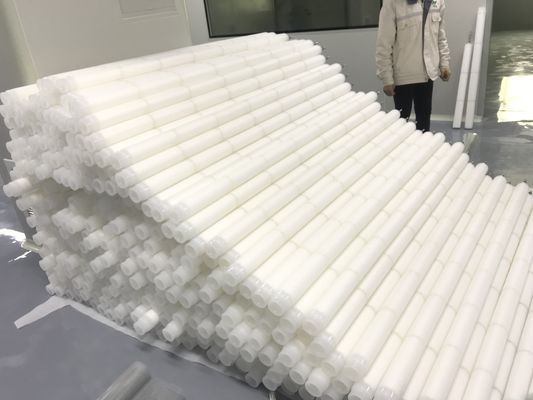

2.7" Diameter 70" Length Backwash
Replace Graver AEGIS Condensate Polishing Filters
Iron Remove In Power Plant
Application
Pre-filter to prevent premature fouling of RO membranes;
Used in boiler condensate for both nuclear and fossil plants, heat recovering steam generators, pre-RO and combined cycle plants.
General Description
PHFZ Series pleated filter cartridges use pleated type, use thermal welding, multi-backwashing, designed specifically for iron removal in condensate water of power generation. Different precisions used as start-up and operating filter elements.
Specifications
|
Micron |
1um, 5um(operating filter), 10um(start-up filter) |
|
|
Filter area |
6.5m² |
|
|
Max. Operating Temperature |
85℃ |
|
|
Max. Operating Differential Pressure |
2.8bar, 65℃ |
|
|
Design Flow Rate |
3.9m³/h～4.5m³h |
|
|
Parts Material |
Filter Medium |
Polypropylene |
|
Center Core |
Reinforced Polypropylene |
|
|
Dimensions |
Outside Diameter |
65mm, 69mm, 70mm |
|
Length |
70" (1778mm); (Customized on request) |
|
|
Connection thread size |
1 1/2"-12, M33x1.5; (Customized on request) |
|
|
Screw size |
M6, M8, M10, 3/8; (Customized on request) |
|
