General Description:

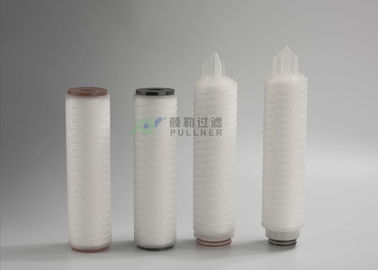

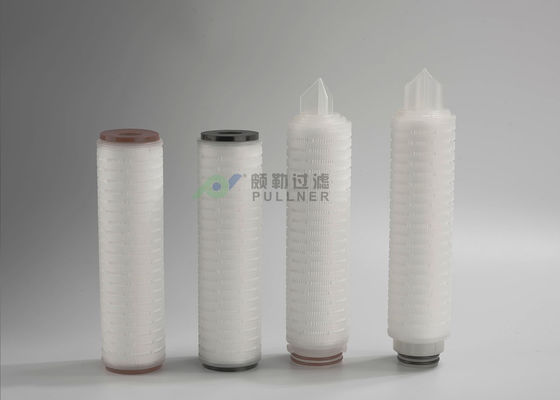

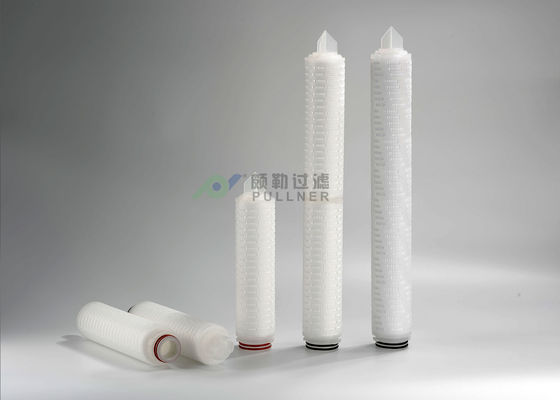

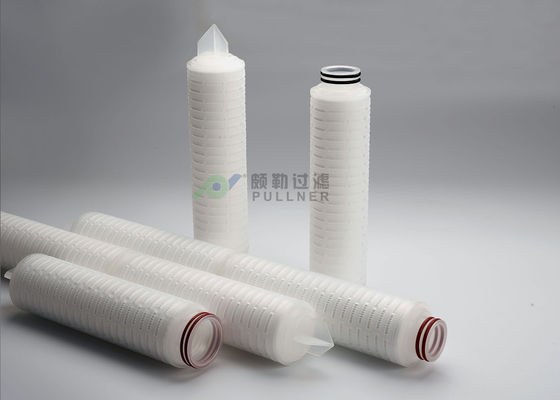

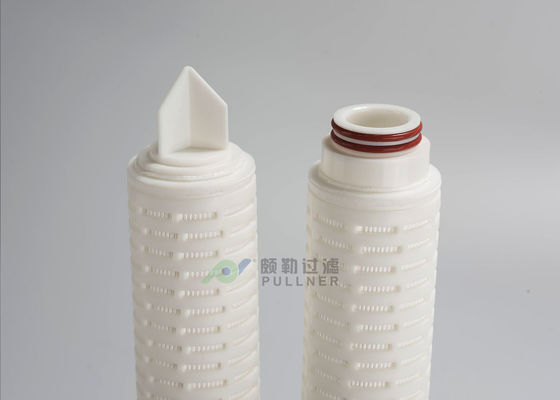

The PFL series filter cartridge uses PTFE filter membrane, offering excellent chemical compatibility and natural hydrophobicity. Strictly controls metal ion extractables, suitable for most chemicals and organic solvents filtration in the electronic industry.
The PFLH series filter cartridge uses modified hydrophilic PTFE membrane, which can directly filter polar solutions without pre‑wetting, reducing operation time and usage costs.
Dimensions
|
Outer diameter
|
2.7" (69mm)
|
|
Length
|
10", 20", 30", 40"
|
Material of Construction
|
Filter Medium
|
PTFE
|
|
Support/Drainage
|
PP
|
|
Center core/Outer Cage/End Caps
|
PP
|
|
Seals Material
|
NBR, Silicone, EPDM, Viton, Teflon
|
Filter Performance
|
Removal rating
|
0.1um, 0.22um, 0.45um
|
|
Max. operating temperature
|
80℃
|
|
Max. operating differential pressure
|
4.2 Bar @ 25℃
|
|
Max. operating differential pressure
(Reverse direction)
|
2.1 Bar @ 25℃
|
|
Max. temperature sterilization
|
30 times, 30 minutes at 121℃
|
Features:
- PTFE filter membrane provides excellent particle capture performance, offering up to 99.99% particle interception efficiency
- The filter cartridge uses high‑purity materials without any additives and adhesives, ensuring low extractables.
- 100% integrity testing before leaving the factory.
Ordering Information:
Pullner laboratory:
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
