Product Details:
|
OD: | 6" | Length: | 40" |
---|---|---|---|
Material: | PP, PET | Filtration Rating: | 1um, 2um, 5um, 10um, 15um, 20um, 30um, 50um, 70um, 100um |
Filtration Area: | 5.5㎡ | MOQ: | 1 Piece |
Sample: | Free | OEM: | Yes |
High Light: | 10 Micron High Flow Cartridge,PP Pleated High Flow Filter Element,High Flow Filter Cartridge 1016mm |

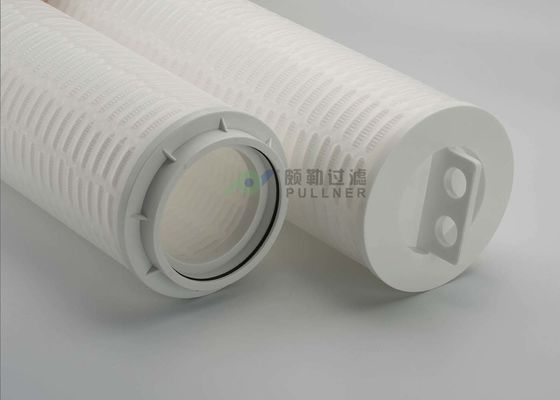

RO PP Pleated High Flow Filter Cartridge Length 1016mm Flow Rate 70m3/H 10Micron
General Description
PHFK series high flow filter cartridge is made of diameter 6"(152mm) and PP pleated design, with high-strength pp center core, outside to inside flow direction. All connection use thermal welding. Outer cage have two types: integral pp cage and polyester mesh.
Application:
General Purpose: RO Pre-filtration, all kinds process water purification
Industrial filtration: Process fluid, process water, condensed water, coolant, wastewater treatment;
Food and Beverage: Process water;
Petrochemical: Various solvents, chilled water, brine filtration
Power Plant: supplementary water, condensate water, coolant
Features and Benefits:
* 40” outer cage is one piece, with high strength can withstand one adult weight, ensure big effective filtration area, long life;
* Gradient aperture deep polypropylene fiber filter medium, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance;
* Outside to inside filtration direction;
* Easy installation save, less cartridge change out help customers save the labor cost;
* Integral support, high strength, high dirt holding capacity, long service life;
Performance Specifications:
Dimensions(nominal):
OD |
6" (152mm) |
Length |
40" (1016mm) |
Material of Construction:
Model |
Filter Medium |
Support/Drainage |
End Caps |
Seals Material |
PP |
Deep Pleated PP |
Polypropylene |
Glass Fiber Reinforced Polypropylene |
NBR, Silicone, EPDM, Viton |
PET |
Pleated Polyester |
Polyester |
Glass Fiber Reinforced Polypropylene |
Filter Performance
Micron |
10 micron |
Max. operating temperature |
PP type: 82℃ |
PET type: 121℃ |
|
Max. operating differential pressure |
PP type: 3.44bar@82℃ |
PET type: 3.44bar@121℃ |
|
Suggestion pressure for filter replacement |
2.5Bar@20℃ |
Max. flow rate |
70m3/h |
Filtration direction |
Outside to inside |
