High Temperature Water Filter Pleated Type 20"/40"/60"length 5 micron rating

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA
Model Number: PHFLH
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Individual packing in carton box afer poly bag, then 4pcs per carton, 15cartons per pallet.
Delivery Time: 7-12days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 1000pcs per week
Detail Information
OD: 6" (152mm) Length: 20", 40", 60"
Material: Polyester (PET) Filtration Rating: 1um, 2um, 5um, 10um, 15um, 20um, 50um, 70um, 100um
Flow Rate: 110m³/h Filtration Area: 10.5㎡
High Light:

high temp water filter

,

high temperature filter


Product Description

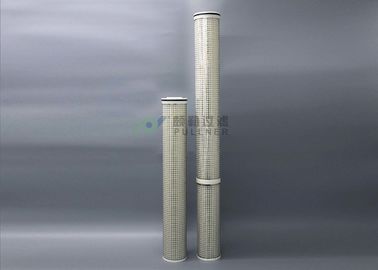

High Temperature Water Filter Pleated Type 20"/40"/60"Length 5 Micron Rating



General Description

PHFLH Series High Flow Filter Cartridge is made of diameter 6"(152mm), single open end, without inner core, inside to outside flow direction. Filter body is Polyester pleated. End caps and filter layer using thermal melting welding, no any bonding agent, with a wide range of chemical compatibility. High temperature resistance, widely used in high temperature conditions.



Performance Specifications



Dimensions(nominal)

OD 6” (152mm)
Length 20"/40"/60"



Material of Construction:

Model PHFLH
Filter Media Polyester
Support/Drainage Polyester
End Caps Glass Fiber Reinforced Polypropylene
Seals Material NBR, EPDM, Silicone, Viton



Filter Performance

Micron 1um, 5um, 10um, 15um, 20um, 40um, 70um, 100um
Maximum operating temperature: Pleated polyester: 121℃

Maximum operating differential pressure

(Inside to outside flow direction)

Pleated polyester: 3.44bar@121℃
Suggestion pressure for filter replacement 2.5Bar@20℃
Suggestion design flow 40": 70m3/h
60": 110m3/h



Application:

General Purpose: RO Pre-filtration, all kinds process water purification

Industrial filtration: Process fluid, process water, condensed water, coolant, wastewater treatment;

Food and Beverage: Process water;

Petrochemical: Various solvents, chilled water, brine filtration

Power Plant: supplementary water, condensate water, coolant



Product Features:

* Single cartridge could achieve flow rate 110m3/h

* Special material suitable for high temperature conditions

* Stainless steel outer cage ensure high strength

* Filtration systems are 50% smaller than typical size system

* Inside to outside flow direction keeps all of the contamination catched.
