Product Details:
|
| OD: | 60mm, Customized On Request | Filter Medium: | 304, 316L, 310S, Hartz Alloy |
|---|---|---|---|
| Filtration Rating: | 1um~100um | Length: | 10", 20", 30", 40", 50" |
| End Caps: | DOE, SOE | Seals: | NBR, Silicone, Viton, PTFE |
| MOQ: | 1 Piece | Certificate: | ISO 9001 |
| High Light: | stainless steel cartridge filter,stainless steel micron filter |
||

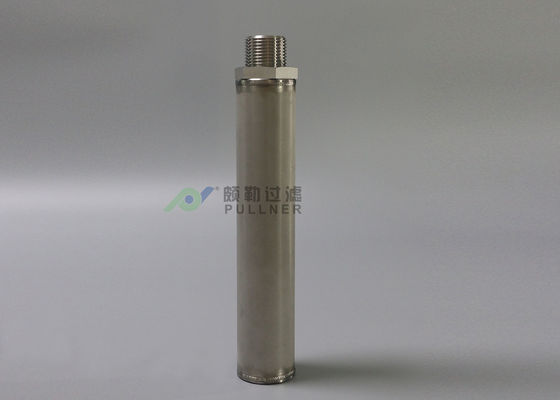

304 316L Power Sintered Stainless Steel Filter for Nature Gas Water RO Pre-filter
General Description
PHSP series metal power sintered filter cartridge is made of stainless steel 304, 316L, 310S or Hartz alloy, has excellent high temperature, high pressure and corrosion resistant properties, aperture evenly distributed, good permeability, washable, weldability and machinability, etc. Suitable for high temperature and high pressure and complex working conditions.
Applications:
1. Nature gas filtration;
2. Water RO pre-filtration
Features and Benefits
No media loss;
Corrosion resistant , oxidation, high temperature;
High porosity, small filtration resistance, high penetration efficiency;
Varieties of metal materials;
Uniform structure, Narrow aperture distribution, high separation efficiency.
Operating Conditions
|
Max. operating differential pressure |
4.0bar |
|
Max. operating temperature |
480℃ |
Material Properties
|
No. |
Liquid Accuracy (um) |
Absolute Accuracy (um) |
Porosity (%) |
Average Air-permeability (L/dm2.min) |
Liquid Flow Rate (m3/h) |
|
1 |
0.5 |
5 |
15 |
0.22 |
0.17 |
|
2 |
1.0 |
10 |
20 |
1.62 |
0.21 |
|
3 |
3.0 |
17 |
30 |
2.67 |
0.3 |
|
4 |
5.0 |
30 |
31 |
3.78 |
1.26 |
|
5 |
8.0 |
40 |
31 |
7.27 |
2.7 |
|
6 |
10 |
50 |
32 |
9.17 |
3.62 |
|
7 |
15 |
60 |
35 |
18.12 |
4.8 |
|
8 |
20 |
70 |
37 |
24.17 |
5.4 |
|
9 |
40 |
100 |
42 |
25.17 |
5.7 |
Remarks: Bubble pressure test compliance with ISO 4003.
Air permeability test compliance with ISO 4022, air pressure of the average permeability is 200Pa.
Test Conditions: Liquid Viscosity=1 CP﹒S, the test filter OD is 60mm, 300mm length, under 1.5bar pressure.
Products Specifications
|
OD |
Standard Length |
Filter area |
|
60mm Customized on request |
5in.(127mm) |
0.024m2 |
|
10in.(254mm) |
0.048 m2 |
|
|
20in.(508mm) |
0.096 m2 |
|
|
30in.(762mm) |
0.14 m2 |
|
|
40in.(1000mm) |
0.19 m2 |
