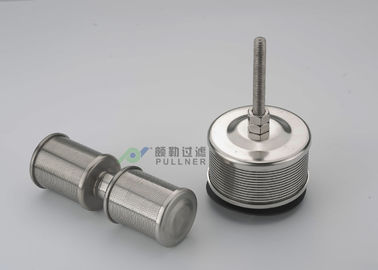

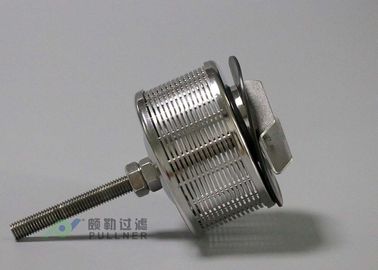

Metal Wedge Wire Stainless Steel Filter Backflushing Johnson Sieve Tube Filter Water Nozzle

Backflushing Johnson Sieve Tube Stainless Steel Filter Metal Wedge Wire Filter

General Description

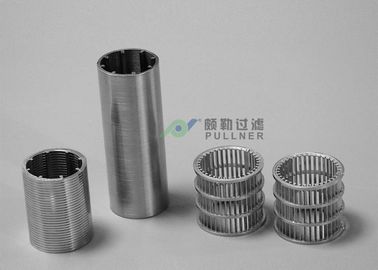

Metal wedge wire filter cartridge is formed by welding wire(cross section is wedge)through a special welding technology welded on the support wire, use Special equipment for resistance welding, high welding strength, uniform gap, strong corrosion resistance, effective filter area, high penetration efficiency, simple structure, minimum aperture 25μm, arbitrarily chosen by the customer.

Filter Material

1. 304(0Cr18Ni9)

2. 321(1Cr18Ni9Ti)

3. 316L(00Cr17Ni14Ni14Mo2)

Specifications

1. Filter layer standard: Around-welded stainless steel sieve tube (SY5182-87);

2. Outside diameter(mm): 25.4, 33, 38, 50, 57, 76, 89, 105, 117, 130, 850; Special size can customized as customers’ request.

Applications

The product is especially suitable for fluids containing wax, asphalt and high viscosity. Widely used in coarse and fine filtration of water treatment of power oil wells, gas wells, wells, chemical, mining, paper making, environmental protection, metallurgy, food, sand, Decoration and other industries.

Features

High mechanical strength, can withstand greater pressure;

Uniform aperture, form uniform filter cake, beneficial backwash regeneration;

Wedge-shaped filter gap, improve backwash regeneration capacity;

High pressure, high temperature, anti-aging, corrosion resistant, available for many types liquid;

Almost two-dimensional filter, without particle accumulation, can gather energy when backwash, good backwash effect.
