Product Details:
|
| OD: | 50mm; Customized On Request | Material: | PP, Cotton, Glass Fiber |
|---|---|---|---|
| Filter Rating: | 1um, 2um, 5um, 10um, 15um, 20um | Length: | 70", 60"; Customized On Request |
| Sample: | FREE | Customized: | Yes |
| High Light: | industrial cartridge filters,sediment filter cartridge |
||

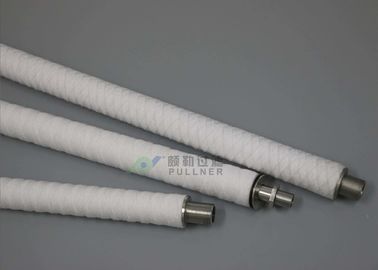

Backwash CPU Filters Operating/Start-Up Filter Element PP String Wound Filters Element
Performance Specifications
Dimensions
| OD | 50mm, 60mm; Customized on request |
| ID | 25mm, 28mm, 30mm |
| Length | 70"(1778mm), 60" (1524mm); Customized on request |
Material of Construction
| Filter Media | Polypropylene, Cotton, Glass Fiber |
| Support Core | Stainless steel 304/316L |
Filter Performance
| Micron | 1um, 5um, 10um |
| Maximum operating temperature | 85℃ |
| Maximum operating differential pressure | 2.45Bar |
| Design Flow Rate | 2.9m³/h-3.2m³/h |
| Connection Type | Thread |
| Connection thread size | M33×1.5, M33×2, G1", 1 3/16〃-24 BSW |
| Screw size | M6, M8, M10 |
General Description
PHFX Series String Wound Filter Cartridge is depth filtration type, made of stainless steel core, with yarn (polypropylene, cotton, glass fiber) according to a specific process, tightly wrapped on the porous stainless steel core, formed loose outer layers and tight inner layers structure, which can effectively filter suspended solids, rust, particles and other impurities in fluid.
Installation supports can be customized on request. It suited for use in filtration systems pre-coating with resins.
Application:
1. RO pre-filtration, desalination pretreatment;
2. Power plant condensation water filtration;
3. Paints, coatings, petrochemical, refining;
4. Microelectronics, films, fibers, resins.
Features and Benefits:
High Surface area;
Stainless steel core and end fittings;
Customized installation supports on request;
Designed for iron removal in condensate water;
Suitable for use with resins pre-coating techniques;
Up to 70” length, high filtration area, for high dirt holding capacity;
Glass fiber and Cotton suitable for high temperature applications.
Simple structure, no acid consumption and waste acid regeneration.
