Product Details:
|
| Length: | 10''(254mm) | Diameter: | 69mm |
|---|---|---|---|
| Material: | PP(Polypropylene) | Filter Efficiency: | 95-99.9% |
| Micron: | 0.3Um-5Um | Sealing: | EPDM/Silicone/Viton/FEP |
| Highlight: | PPM 5 micron pleated water filter,226 Fin pleated water filter cartridge,PPM Pleated Water Filters |
||

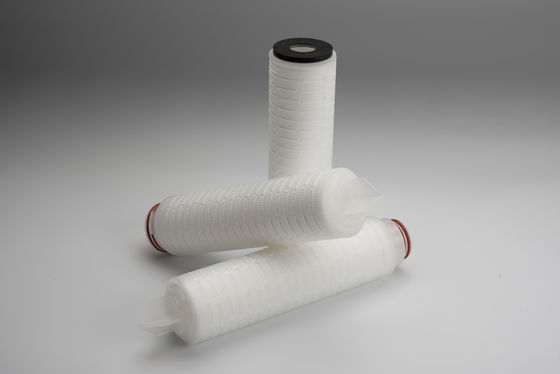

PP material removal rating 99.98% 226 Fin Length 10 PPM Series High Viscosity Polypropylene Pleated Water Filters
The PPM series pleated filter combines the characteristics of depth filtration and pleat technology, ensure high dirt holding capacity and filtration area. It’s especially suitable for filtering high suspended particles, colloidal substances and high viscosity liquids.
Material Constructions
| Filter media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End Cap | Polypropylene (PP) |
| Seal material | Silicone, NBR, Viton, EPDM |
Performance
| Filtration rating | 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 50μm, 100μm |
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Difference Pressure |
4bar/21℃ 2.4bar/80℃ |
Filtration Efficiency
| PPM | ＞95% | ＞98% | ＞99.8% | ＞99.9% |
| 0.3μm | 0.15 | 0.22 | 0.25 | 0.3 |
| 0.5μm | 0.22 | 0.4 | 0.45 | 0.5 |
| 1.0μm | 0.5 | 0.65 | 0.8 | 1.0 |
| 5.0μm | 1.5 | 2.0 | 2.5 | 3.0 |
Ordering Information
PPM 0300 10 C1 E
| Series | Micron | Length | End Cap Type | Seal Material | ||
| PPM | 0030=0.3μm | 05=5" | C1 | =226/Spear | E | =EPDM |
| 0050=0.5μm | 10=10" | C3 | =222/Spear | S | =Silicone | |
| 0100=1.0μm | 20=20" | C5 | =222/Flat | V | =Viton | |
| 0300=3.0μm | 30=30" | C6 | =226/Flat | P | =FEP | |
| 0500=5.0μm | 40=40" | C9 | =DOE | |||
