Product Details:
|
| Diameter: | 130mm | Length: | 10" |
|---|---|---|---|
| Filter Medium: | PP/PES/PTFE | Filtration Rating: | 1um, 2um, 5um, 10um, 15um, 20um, 50um, 70um, 100um |
| MOQ: | 1 Piece | Delivery Time: | 1 Month |
| Sealing Material: | Silicone/Viton/PEP/EPDM | Filter Area: | 2㎡ |
| Flow Rate: | 200L/min | Max. Operating Temperature: | 80℃ |
| Highlight: | 200L/min PTFE membrane filter cartridge,130mm PTFE membrane filter cartridge,Wet Process ptfe filter cartridge |
||

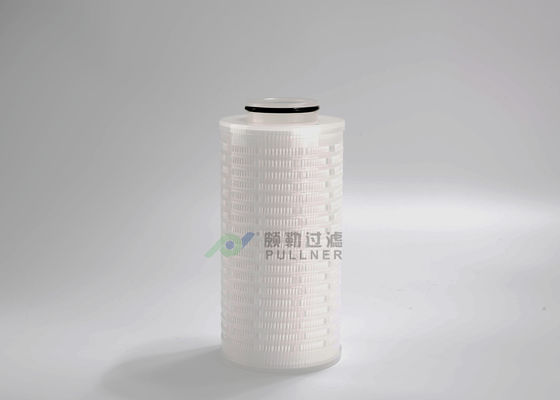

130mm High Generation Line Wet Process High Flow Membrane Filter Cartridge
The 130mm High Generation Line Wet Process High Flow Membrane Filter Cartridge is mainly used in processes with high flow requirements. The 130 series filter can reach the flow requirement of more than 200L/min. The exquisite appearance structure can fully meet the requirements of the equipment for space. The filtration area of a single filter element of more than 2㎡ has the performance of high flow and high dirt holding capacity, which can reduce the number of equipment downtime caused by filter cartridge change-out.
Performance
| Filtration Rating | 0.05μm, 0.1μm, 0.22μm, 0.45μm, 0.65μm, 1μm, 3μm, 5μm, 10μm |
| Maximum Operating Temperature | 80℃ |
| Maximum Operating Difference Pressure |
4bar/21℃ 2.4bar/80℃ |
Material Construction
| Filter Media |
PFL:PTFE(Hydrophobicity) PFLH:PTFE(Hydrophilic) EPS:PES HPPV:PP |
| Cage/Core/End Caps | Polypropylene (PP) |
| Seal Material | EPDM, Silicone, Viton |
Biological Safety
| Dissolution Content |
＜30mg/10" ＜0.25EU/ml/10" |
Ordering Information
130 PFL 002010 S E
| Series | Micron | Length | End Cap Type | Seal Material | ||||
| 130 | PFL | PFLH | EPS | HPPV | 10 | =10" |
S=334 Single O-ring |
E=EPDM |
| 0020=0.2μm | 0020=0.2μm | 0005=0.05μm | 0050=0.5μm | S=Silicone | ||||
| 0050=0.5μm | 0050=0.5μm | 0010=0.1μm | 0100=1.0μm | V=Viton | ||||
| 0100=1.0μm | 0100=1.0μm | 0022=0.22μm | 0150=1.5μm | |||||
| 0300=3.0μm | 0300=3.0μm | 0045=0.45μm | 0300=3.0μm | |||||
| 0500=5.0μm | 0500=5.0μm | 0065=0.65μm | 0500=5.0μm | |||||
| 1000=10μm | 1000=10μm | 0120=1.2μm | 1000=10μm | |||||
| 2000=20μm | ||||||||
| 4000=40μm | ||||||||
| 7000=70μm | ||||||||
| 9000=90μm | ||||||||
