152mm 70m3/H Water Purifier Power Plant Filter Cartridge

Basic Information
Place of Origin: China
Brand Name: Pullner
Certification: ISO 9001
Model Number: PHFK
Minimum Order Quantity: 1
Price: USD+ 45-240 +Piece
Packaging Details: wooden box package
Delivery Time: 1 week
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300 + pieces +per + day
Detail Information
Diameter: 6''(152mm) Removal Rating: 1Um -100 Um
Max. Operating Temperature: 85 ℃ APPlication: Power Plant Condensation Water Filtration
Seals Material: NBR/ EPDM/ Viton Support: Polypropylene
Filter Media: Pleated Depth Polypropylene Suggestion Max. Flow Rate: 70 M³/h
Material: Polypropylene Connection Type: Single O-ring/ Double O-ring
High Light:

70m3/h Power Plant Filter Cartridge

,

152mm Power Plant Filter Cartridge

,

70m3/h water purifier cartridge


Product Description

Ordering Information

PHF L PP 0500 40 G V

Series Type Material Micron Length Outside Sealing End Caps
PHF L PP 0010 =0.1μm 1500 =15μm 20 =20" G =Strengthen V =Viton ZA =Single-Ring(HFK)
  LH PBT 0100 =1.0μm 2000 =20μm 40 =40" M =Melt S =Silicon ZB =Double-Ring(HFK)
  K GF 0500 =5.0μm 4000 =40μm 60 =60" S =Mesh E =EPDM ZA =一Type(HFM)
  M   1000 =10μm 7000 =70μm             ZB =十Type(HFM)
          1000 =100μm           none =(HFL/HFLH)



Power plant supplementary water condensation water Replace Parker High Flow Water Filter

PHF series large-flow filter cartridge adopts large diameter structure of 6 "with single end opening. The main body of filter cartridge is divided into two forms of melting blown and Pleated. The end cover and filter layer are welded by hot melt without any binder, so they have extensive chemical compatibility.



Application

Power plant condensation water filtration;

RO Pre-filtration, desalination pretreatment;

Biopharmaceutical industry pharmaceutical raw materials solvents, water filtration;

Food and Beverage process water treatment ;



Material Structure

Filter Material

PP:Deep Pleated PP/

Melt PP

FO:Organic Fiber GF:Glass Fiber/Polyester

Support/

Diversion

PP Organic Fiber Polyester
End Cap Fiberglass reinforced polypropylene Fiberglass reinforced polypropylene Fiberglass reinforced polypropylene



Design Parameter

Size

(Diameter*Length)

Design Flow

(m3/h)

Maximum Flow

(m3/h)

Filter Area

(㎡)

6"*20" 15 40 2.6
6"*40" 30 80 5.2
6"*60" 45 120 7.8



Operating Characteristic

Maximum Temperature

PP:82°C

FO:120℃

GF:121℃

Maximum Differential Pressure

PP:3.44bar / 21°C

FO:3.44bar / 120°C

GF:3.44bar / 121°C

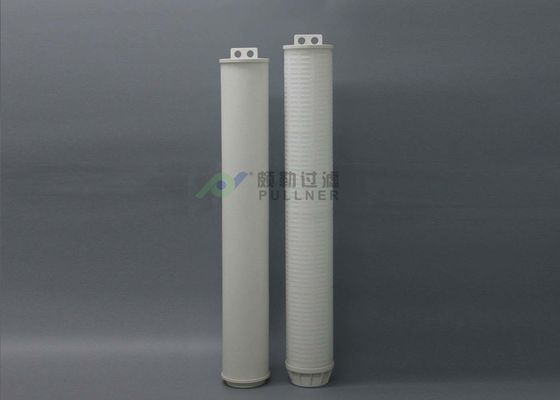

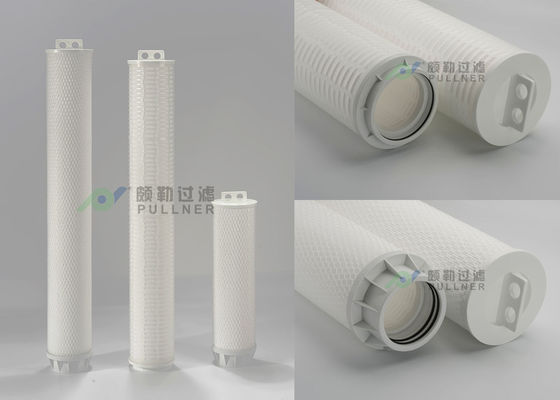

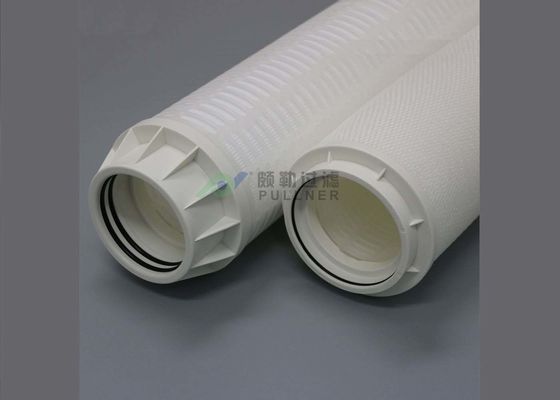

152mm 70m3/H Water Purifier Power Plant Filter Cartridge 0152mm 70m3/H Water Purifier Power Plant Filter Cartridge 1152mm 70m3/H Water Purifier Power Plant Filter Cartridge 2
