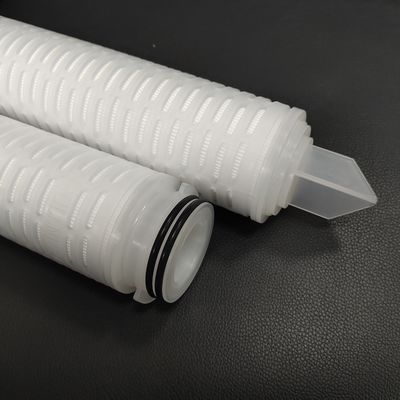

2.7" OD 60μM Pleated Polypropylene Water Filter Cartridge

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA
Model Number: PLZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Indiviedual packing in carton box after poly bag, then 50pcs per carton. 12 cartons each pallet.
Delivery Time: 5-7working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 2000pcs per week
Detail Information
OD: 2.7"(68.5mm) Length: 10", 20", 30", 40"
Material: PP Filtration Rating: 0.1um, 0.22um, 0.45um, 1um, 2um, 5um, 10um, 20um, 30um, 50um, 60um
Flow Rate: 1.2m³/h/10" MOQ: 1 Piece
Sample: Free OEM: Yes
High Light:

60μm pleated polypropylene filter cartridge

,

RO pleated polypropylene filter cartridge

,

2.7" polypropylene water filter cartridge


Product Description

PP Filter Cartridge 5 Micron PP Material For Water Filtration in RO Pre-filtration



General Description

PLZ Series Pleated Filter Cartridge is constructed of polypropylene material, providing micron rating from 0.1um to 60um. Has high and stable filtration efficiency, can be used for various demanding filtering environment.



Specifications

Item Technical Parameters
Micron 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um
Filtration area 0.4-0.7m²
Outside diameter 68.5mm
Max. operating differential pressure ΔP≤0.35MPa at25℃
Max. operating differential pressure (reverse direction) ΔP≤0.28MPa at60℃
Max. operating temperature 80℃(Stainless steel support is recommended for temperature exceeds 50℃)
Sterilization temperature 30 minute cycles @121℃
Flow rate 1.2m³/h/10"



Material structure

Filter Media Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Core/Cage/End Cap Polypropylene (PP)
O-ring & gaskets seals NBR, Silicone, EPDM, Viton



Performance

Max. operating temperature 80℃
Max. operating pressure 4bar/21℃
2.4bar/80℃
Mosit-heat sterilization 121℃/30min
Flowing hot water sterilization 85℃/30min



Features and Benefits:

Excellent Chemical compatibility, high flow, low differential pressure, long service life;

Depth pleated membrane, can meet various application areas;

Graded pore density provide high dirt holding capacity;

Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;

Absolute rating, bubble point test compliance with GMP certification;



Applications:

* General purpose: RO Pre-filtration, all kinds process water purification;
* Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating solution
* Food and Beverage: Alcohol, Beverage, Pure water.
* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
