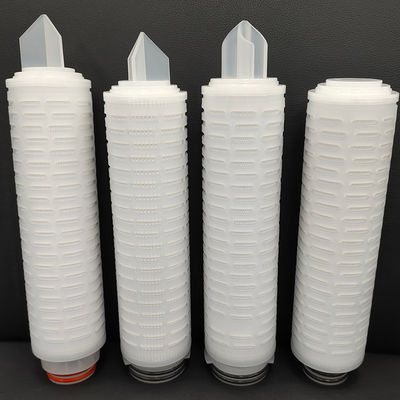

RO Prefiltration Food Beverage Industry 0.22um Pleated Filter Cartridge

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA
Model Number: PLZ
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Indiviedual packing in carton box after poly bag, then 50pcs per carton. 12 cartons each pallet.
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 1500-2000pcs per week
Detail Information
Out Diameter: 2.7" Length: 10"
End Caps Material: PP Filtration Rating: 0.22um
Flow Rate: 1.2m³/h/10" Sample: Free
Certificate: FDA/ ISO 9001 Material: Polypropylene
Inner Diameter: 30mm
High Light:

0.22um Pleated Filter Cartridge


Food Beverage Pleated Filter Cartridge


0.22um pleated water filter cartridge

Product Description

RO prefiltration Food Beverage Electronics Industry 0.22um PP Pleated Filter Cartridge


Material structure

Filter medium Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Core/Cage/End Cap Polypropylene (PP)
O-ring & gaskets seals NBR, Silicone, EPDM, Viton


Item Technical Parameters
Micron 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um
Filtration area 0.4-0.7m²
Outside diameter 2.7" (68.5mm)
Max. operating differential pressure ΔP≤0.35MPa at25℃
Max. operating differential pressure (reverse direction) ΔP≤0.28MPa at60℃
Max. operating temperature 80℃(Stainless steel support is recommended for temperature exceeds 50℃)
Sterilization temperature 30 minutes cycle @121℃
Flow rate 1.2m³/h/10"


Max. operating temperature 80℃
Max. operating pressure 4bar/21℃
Mosit-heat sterilization 121℃/30min
Hot water sterilization 85℃/30min


1. Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.
2. Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.
3. Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc
4. Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment.
5. Water treatment: Drinking water, commercial water treatment, desalination

Features and Benefits:
1. Excellent Chemical compatibility, high flow, low differential pressure, long service life;
2. Depth pleated membrane, can meet various application areas;
3. Graded pore density provide high dirt holding capacity;
4. Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
5. Absolute rating, bubble point test compliance with GMP certification;
6. Strict quality control system, complete production process flow;
