RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing

RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing
RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing

Large Image :  RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing

Product Details:
Place of Origin: Shanghai
Brand Name: PULLNER
Certification: ISO9001 ISO45001
Model Number: JDX150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: After plastic wrap wooden case
Delivery Time: 30-45 working days
Payment Terms: T/T, L/C, , D/P, D/A, Western Union, MoneyGram
Supply Ability: 100pcs per month

RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing

Description
Product Name: JDX150 High Flow Filter Cartridge Industrial Filter Housing Polish Type: Mirror Polish Or Internal Electro-polished
Surface Option: Internal Ra:0.3um/ External Ra:0.4um Max. Operating Temperature: 90℃/ Design Temperature: 140℃
Housing Body: 316L Max. Operating Pressure: 0.6MPa(6bar) / 1.0MPa(10bar)
Material: 316L Clamp: 316
Vent / Drain: 316L Leg: 316
O-ring/ Gaskets: Silicon, Viton, EPDM, PTFE Vent: G1/2''
Drain: G1'' Body Connection: Swing Bolt / C-Clamp
Inlet/ Outlet: Flange Pressure Gauge: M14*1.5
High Light:

EPDM Stainless Steel Filter Housing

,

0.3μm Stainless Steel Filter Housing

,

0.3μm industrial filter housing

RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing



General Description

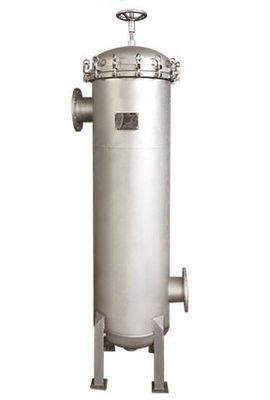

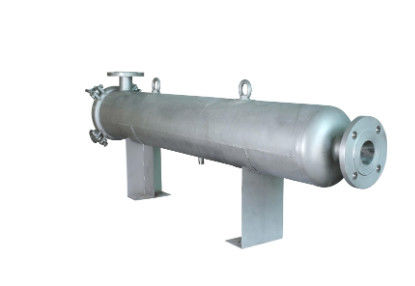

JDX150 high flow series filter housing used with JDX150 high flow filter cartridge. It is mainly used in some high flow occasions, especially in the field of water treatment.The diameter of the JDX150 filter cartridge is 6"/150mm, the filtration area of a single filter cartridge can reach 6m2, and the maximum flow rate is 60m3/h.JDX150 is available in two types: vertical and horizontal. Conventional 10-core-40 inch filters usually use vertical filter housing; for medium and large systems with more than 1000 tons of water per hour, the horizontal structures can be selected. The 60-inch filter cartridge is used to meet the high flow rate and is easier to replace. High flow series filter housing are specifically designed to deliver all of the filtration benefits in a compact footprint. Our housings are available in standard designs, as well as customizable configurations to suit your specific needs. All standard high flow filter housings are designed, manufactured, and tested.



Application

Food & beverages Water filtration for beer applications, water filtration for wine applications,
Dyes & Intermediates
RO Pre filtration
Pharmaceuticals
Bore Well water
Processing Chemicals
Dairy Petroleum Derivatives
Paints & Inks
Coolants
Water Treatment



Features and Benefits

•Using sanitary design, no dead ends, and lowest sewage discharge design, the filter is easy to clean and no residual liquid;

• Ultra-high polishing accuracy, the inner wall can be polished 0.3μm, the outer wall can be polished 0.4μm, electrolytic polishing can be selected;

•Using new segmented clamps to enhance the sealing performance and withstand higher pressure;

•The bracket is equipped with an adjusting nut to adjust the height of the filter, which is convenient to use.



Surface Treatment

Polish Type Mirror polish or Electro-polished
Polishing Accuracy Internal Ra: 0.3μm or External Ra: 0.4μm




Connection

Housing Connection Strengthened clamp
In-outlet Fast loading
Vent Quick release valve
Drain Quick release valve
Pressure Gauge 1.5 inches clamp









RO Prefiltration & Protection Water Filtration for Wine application Industrial Stainless Steel Filter Housing 0



Vertical Installation Dimension

Code Dimensions (mm) Flange Internal Thread Flow (m3/h) Volume (L)
A B C D E F N1 N2 N3 N4
1 Round40" Φ200 1320 200 1690 380 / DN80 DN80 RC1/4" RC1" 40 50
3 Round40" Φ400 1690 450 2180 560 400 DN80 DN80 RC1/4" RC1" 120 150
4 Round40" Φ450 1690 450 2380 610 440 DN80 DN80 RC1/4" RC1" 160 200
5 Round40" Φ500 1690 450 2580 700 480 DN100 DN100 RC1/4" RC1" 200 250
7 Round40" Φ550 1740 500 2600 750 510 DN100 DN100 RC1/4" RC1" 280 300
9 Round40" Φ650 1740 500 2660 890 585 DN125 DN125 RC1/4" RC1" 360 440



Dimension

Code

A: Total Height

(mm)

B: Inlet / Outlet Distance

(mm)

C: Body Diameter

(mm)

D: Height of Nozzle Above Ground

(mm)

3 Round10" 760 312 200 200
3 Round20" 1040
3 Round30" 1270
3 Round40" 1540
5 Round10" 790 410 250 200
5 Round20" 1070
5 Round30" 1300
5 Round40" 1570
7 Round10" 800 426 267 200
7 Round20" 1080
7 Round30" 1310
7 Round40" 1580
9 Round20" 1160 460 300 200
9 Round30" 1390
9 Round40" 1660
12 Round30" 1440 560 337 200





Ordering Information

Code Structure

Filter

Number

Filter

Model

Filter

Length

Housing Material Housing Connection Inlet / Outlet Sealing Material

Surface

Treatment

Design

Pressure

JDX150 V 01 L 20 S R F50 S M Z
JDX150 V (Vertical)

01

(1 Round)

L (PHFL) 20 (20") S (304) R (Eyebolt)

F50

(Flange DN50)

S (Silicone) M (Mirror Polish) Z (0.6MPa)
  H (Horizontal) 03 K (PHFK) 40 L (316L)   F80 V (Viton) E (Electro-polished) O (1.0MPa)
    04 M (PHFM) 60     F125 E (EPDM) P (abrasive blasting)
    05         F150 T (PTFE)
    07         F200
    09
    ...
