0.5 Micron String Wound Filter Cartridge 115mm Diameter

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA, ISO
Model Number: PLX
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box after poly bag, 50pcs per carton.
Delivery Time: 7-12 days
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 2000pcs per week
Detail Information
Model: PLX Products Name: Wire/String Wound Filter Cartridge/element
OD: 60-63mm, 115mm ID: 28mm, 30mm
Filter Medium: PP, Cotton, Glass Fiber Length: 10", 20", 30", 40"
Micron: 1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um Application: Industrial Water Treatment
Certificate: ISO9001 Sample: Free
High Light:

0.5 micron String Wound Filter Cartridge


115mm String Wound Filter Cartridge


115mm string wound water filter

Product Description

0.5 Micron String Wound Water Filter Cartridge/Elements



Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.

Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.

Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc


Features and Benefits

Suitable for high solid content and high viscosity material liquid solid-liquid separation;

Choice different materials configured according to the process conditions to meet the needs of a variety of liquid filtration;

PP support has good heat resistance, suitable PH 1-13;

Stainless steel support has good heat resistance, maximum operating temperature 120 ℃.


General Description

* PP String Wound Filter Cartridge can be used in acid and alkali, chemical solution and other non-organic solvent; Suggest Max. operating temperature ≤60℃.

* Cotton yarn fiber filter with Stainless steel support core, can be used in organic solvents, oils, water, alkaline solution, pharmaceuticals, beverages, etc.

* Glass fiber has a wide range of chemical compatibility, can be applied to filter special chemicals and corrosive liquid.


Performance Specifications

OD (Outside Diameter)

60-63mm,115mm; (Customized on request)

ID (Inside Diameter)



5 ", 10 ", 20 ", 30 ", 40 "


1um, 5um, 10um, 20um, 30um, 50um, 75um, 100um.

Filter Medium

Polypropylene(PP), Cotton, Glass Fiber

Center Core

Polypropylene(PP), Stainless steel 304/316L


Products Presentation

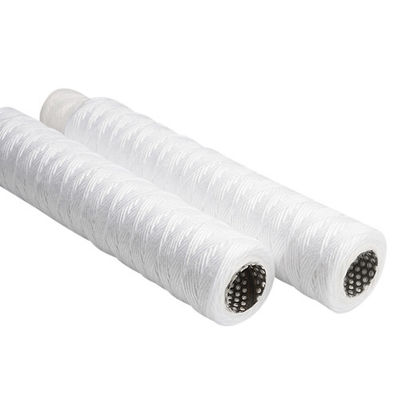

0.5 Micron String Wound Filter Cartridge 115mm Diameter 0

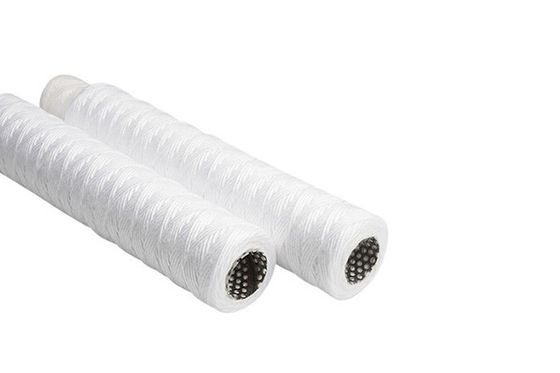

0.5 Micron String Wound Filter Cartridge 115mm Diameter 1


Features and Benefits:
* 40'' outer cage is one piece, with high strength can withstand one adult weight, ensure big effective filtration area, long life;
* Inside to outside flow direction keeps all of the contamination catched;
* Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers save the labor cost;
* Integral support, high strength, high dirt holding capacity, long service life;
* Single cartridge could achieve flow rate 110m3/h;
* Filtration systems are 50% smaller than typical size system;
* Filtration efficiency reach 99.8%;
* Strict quality control system, complete production process flow;
* Flexible payment method: T/T, L/C, West Union, Paypal;
* FREE sample.

1. Q: I want a sample, can you supply?
A:Yes, we can supply one pcs sample to you.
2. Q: I want to replace the brand of Pall, do your products can replace it?
A: yes, Pullner's products can replace some of Pall's products.
