Product Details:
|
| OD: | 2.7"(68.5mm) | Length: | 10", 20", 30", 40" |
|---|---|---|---|
| Material: | PP | Filtration Rating: | 0.1um, 0.22um, 0.45um, 1um, 2um, 5um, 10um, 20um, 30um, 50um, 60um |
| Flow Rate: | 1.2m³/h/10" | Product Name: | PP Filter Cartridge |
| Application: | Water Filtration In RO Pre-filtration | ||
| High Light: | 0.45um PP Filter Cartridge,RO Pre Water Filter Cartridge,Water PP Filter Cartridge 0.1um |
||

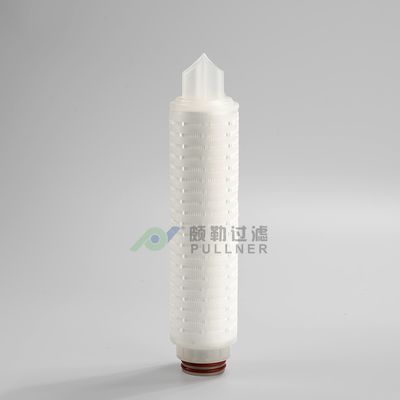

0.1um, 0.22um, 0.45um PP Filter Cartridge For Water Filtration In RO Pre-Filtration
General Description
PLZ Series Pleated Filter Cartridge is constructed of polypropylene material, providing micron rating from 0.1um to 60um. Has high and stable filtration efficiency, can be used for various demanding filtering environment.
Applications:
* General purpose: RO Pre-filtration, all kinds process water purification;
* Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating solution
* Food and Beverage: Alcohol, Beverage, Pure water.
* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
Features and Benefits:
Excellent Chemical compatibility, high flow, low differential pressure, long service life;
Depth pleated membrane, can meet various application areas;
Graded pore density provide high dirt holding capacity;
Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
Absolute rating, bubble point test compliance with GMP certification;
Specifications
| Item | Technical Parameters |
| Micron | 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration area | 0.4-0.7m² |
| Outside diameter | 68.5mm |
| Max. operating differential pressure | ΔP≤0.35MPa at25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Flow rate | 1.2m³/h/10" |
Material structure
| Filter Media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| O-ring & gaskets seals | NBR, Silicone, EPDM, Viton |
Performance
| Max. operating temperature | 80℃ |
| Max. operating pressure | 4bar/21℃ |
| 2.4bar/80℃ | |
| Mosit-heat sterilization | 121℃/30min |
| Flowing hot water sterilization | 85℃/30min |
