Product Details:
|
| Filtration Rating: | 5um | OD: | 2.7" (68.5mm) |
|---|---|---|---|
| Length: | 10"(254mm) | Filter Medium: | PP |
| Cage/Core/End Caps: | PP | Flow Rate: | 1.2m³/h/10" |
| MOQ: | 100 Piece | OEM: | Yes |
| Name: | PP Filter Cartridge | ||
| Highlight: | Water Treatment Pleated Filter Cartridge,5um Pleated Filter Cartridge,Polypropylene Pleated Membrane Filter Cartridge |
||

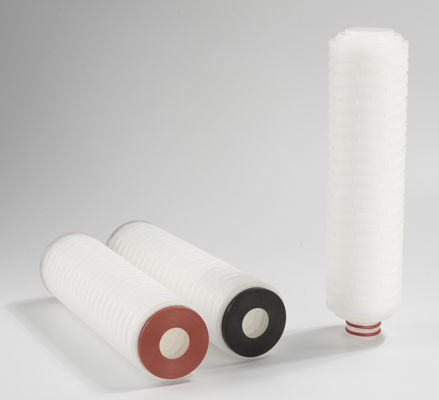

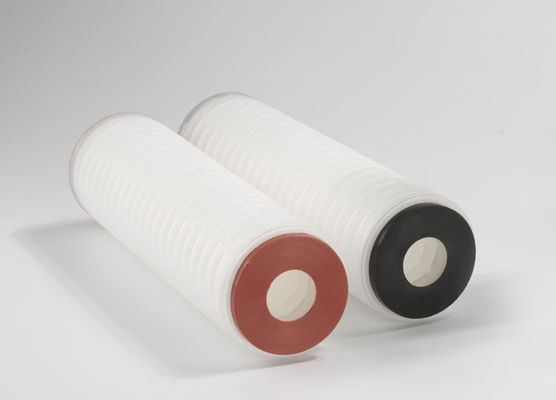

Water treatment Pleated Filter Cartridge Length 10 inch Flow Rate 1.2 cuber meter per hour
General Description
PLZ Series Pleated Filter Cartridge is constructed of superfine pp(polypropylene) and woven or mesh support materials, providing micron rating from 0.1um to 60um. Has high and stable filtration efficiency, can be used for various demanding filtering environment.
Its out cage can be divided into two types: general frame and integral frame. The integral frame out cage, has big filtration area, long service life, high strength, dimensional stability, filter cartridge adopts all-polypropylene structure, double-layer gradient precision PP membrane. High dirt holding capacity, long life and high efficiency.
Applications:
* General purpose: RO Pre-filtration, all kinds process water purification;
* Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating solution
* Food and Beverage: Alcohol, Beverage, Pure water.
* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;
* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.
Features and Benefits:
1. Excellent Chemical compatibility, high flow, low differential pressure, long service life;
2. Depth pleated membrane, can meet various application areas;
3. Graded pore density provide high dirt holding capacity;
4. Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;
5. Absolute rating, bubble point test compliance with GMP certification;
Specifications
|
Item |
Technical Parameters |
|
Micron |
5um |
|
Filtration area |
0.4-0.7m² |
|
Filter medium |
Polypropylene (PP) |
|
Support/Drainage |
Polypropylene (PP) |
|
Core/Cage/End Cap |
Polypropylene (PP) |
|
Outside diameter |
2.7" (68.5mm) |
|
Max. operating differential pressure |
ΔP≤0.35MPa at 25℃ |
|
Max. operating differential pressure (reverse direction) |
ΔP≤0.28MPa at 60℃ |
|
Max. operating temperature |
80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
|
Sterilization temperature |
30 minute cycles @121℃ |
|
Max. operating pressure |
4.0bar/21℃ |
|
2.4bar/80℃ |
Company profile:
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Other products:
