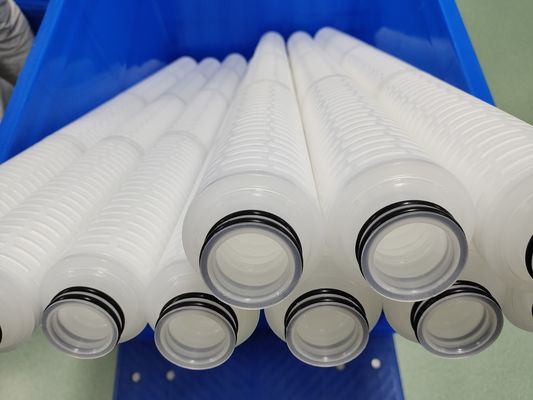

RO Filtration PP Pleated Water Filter Cartridges OD 69 Mm Length 40 Inches 1 Micron

RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron
RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron
RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron

Large Image :  RO Filtration PP Pleated Water Filter Cartridges OD 69 Mm Length 40 Inches 1 Micron

Product Details:
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA
Model Number: PLZ
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Indiviedual packing in carton box after poly bag, then 50pcs per carton. 12 cartons each pallet.
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 1500pcs per week

RO Filtration PP Pleated Water Filter Cartridges OD 69 Mm Length 40 Inches 1 Micron

Description
Name: PP Pleated Water Filter Cartridges OD: 2.7"(68.5mm)
Length: 40"(1016mm) Filter Medium: PP
Filtration Rating: 1um Flow Rate: 1.2m³/h/10"
Sample: Free Max. Temperature: 80℃
Max. DP: 4bar @ 20℃
High Light:

PP Pleated Water Filter Cartridges 69mm

,

RO Filtration Pleated Filter Cartridge

,

40 Inches Pleated Water Filter Cartridges



PP Pleated Water Filter Cartridges OD 69 mm Length 40 inches 5 Micron RO Filtration



General Description

PP series pleated water filter cartridges are made of Polypropylene (PP) membrane. The characteristics of high flow rate and high dirt holding capacity make it economical pre-filter, which is widely used in various fields such as pharmaceutical, electronics, chemical industry, food and beverage, etc. The all-polypropylene structure provides a wide range of chemical compatibility and can filter most acids, alkalis and solvents.



Applications:

* General purpose: RO Prefiltration, all kinds process water purification;

* Industrial: Water pretreatment of power plant, deionized water pre-filtration, and filtration of plating solution

* Chemical / petrochemical: Filtration of various acids, alkalis, solvents and kinds of chemicals;

* Biopharmaceutical: Filtration of pharmaceutical, biotechnology and plasma products.



Features and Benefits:

1. Excellent Chemical compatibility, high flow, low differential pressure, long service life;

2. Depth pleated membrane, can meet various application areas;

3. Graded pore density provide high dirt holding capacity;

4. Common cleaning methods available, or use high-pressure disinfection cabinet and steam sterilization;

5. Absolute rating, bubble point test compliance with GMP certification;

6. Strict quality control system, complete production process flow;

7. Short delivery period, general 7 days;

8. Flexible payment method: T/T, L/C, West Union, Paypal;

9. Free technical support;





Specifications

Item

Technical Parameters

Micron

0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um

Filtration area

0.4-0.7m²

Filter medium

Polypropylene (PP)

Support/Drainage

Polypropylene (PP)

Core/Cage/End Cap

Polypropylene (PP)

Outside diameter

2.7" (68.5mm)

Max. operating differential pressure

ΔP≤0.35MPa at 25℃

Max. operating differential pressure (reverse direction)

ΔP≤0.28MPa at 60℃

Max. operating temperature

80℃(Stainless steel support is recommended for temperature exceeds 50℃)

Sterilization temperature

30 minute cycles @121℃

Max. operating pressure

4.0bar/21℃

2.4bar/80℃



The actual performance of the filter cartridge---Filtraiton principle introduction

For liquid media with ultra-high impurity content, ordinary single-layer filter elements (or unreasonable distribution of filter materials) block very quickly. Gradient filtration and layered interception can be used, and multi-layer gradient structure filter membranes can be effectively used to increase the pollution-holding space, and the interception is large. At the same time as the particles (LPC), the effective particles are guaranteed to remain.







RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron 0

RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron 1

Remarks: Not all filter materials can be made into gradient filtration, and the characteristics of the medium, such as acidity and alkalinity, operating temperature, etc., need to be comprehensively considered. The most commonly used material is PP.







* PULLNER's commitment comes from being responsible to customers!



  • When the product uses the same material and size, and the test quality is comparable, Pullner has the following advantages:
  • Competitive price;
  • Faster Delivery;
  • Faster analysis and problem solving verification center (24H service);
  • More professional technical service team;
  • Better after-sales service (after-sales evaluation form);



Company vision: Strive to be an excellent enterprise in China's high-end filtration market, and have the largest filtration technology development and verification experimental center in China, focusing on future human life safety research!





RO Filtration PP Pleated Water Filter Cartridges  OD 69 Mm Length 40 Inches 1 Micron 2






Faster Delivery;
Faster analysis and problem solving verification center (24H service);
More professional technical service team;
Better after-sales service (after-sales evaluation form);
