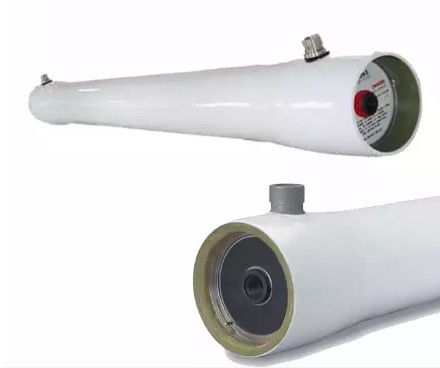

4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration

4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration
4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration 4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration 4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration

Large Image :  4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration

Product Details:
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: ISO9001
Model Number: PHSH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton case
Delivery Time: 7-12 working days
Payment Terms: T/T, L/C, , D/P, D/A, Western Union, MoneyGram
Supply Ability: 100 + PCS + per month

4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration

Description
Product Name: FRP 4*40 Fiberglass Membrane Filter Housing Surface Treatment: Polished & Sandblast
Design Pressure: 1200PSI(8.3MPa) Seal Type: O Type Ring
Filter Cartridge Size: Diameter 6" (152mm) Height: 40" (1016mm) Or 60"(1524mm)
Bursting Pressure: 7200PSI(49.8MPa) Inlet & Outlet Type: Internal Thread/Flange
Seal O-ring: NBR/EPDM/Viton Water Purification Outlet: 1'' NPTF Thread Interface
Temperature Range: -10℃ To 66 ℃ Application: Water Purification
Diaphragm Element: 1-8core Primary/thick Nozzle: 1.5''/2''/2.5'' Clamp Interface
High Light:

4040 FRP Filter Housing

,

Fiberglass Membrane Cartridge Filter Housing SWRO

,

Sandblast Cartridge Filter Housing

4040 Fiberglass Membrane Cartridge Filter Housing SWRO Desalination RO Prefiltration





Description

FRP Series Horizontal Single FRP High Flow Cartridge Filter Housing offer a cost effective, easy to use cartridge filter housing solution. It's suitable for 40" and 60" high flow pleated filter, which means it has higher flow rate than traditional filter cartridges. Both end caps adopt PA material and sealed with EPDM O-ring, which have high sealing performance and easy to assemble. Comparing to stainless steel high flow filter housing, FRP series FRP housing can be used more widely, has smaller footprint and are more economic.

Besides the strong anti-corrosion performance, high-strength FRP high flow filter housing has the advantages of simple assembly, flexible design, reliable operation and easy replacement of filter elements, which makes it popular in various applications, such as brackish water reverse osmosis prefiltration, sea water desalination, food and beverage, power generation and water treatment system.



Features and Benefits

• Unit type design, convenient combination, high-cost performance;

• The membrane shell adopts numerical control winding technology, with high smoothness and easy cleaning.

•  Side-in and side-out inlet and outlet design makes it easier to remove the filter cartridge;

• The equipment is small in size and beautiful in appearance. Vertical/horizontal can be selected according to the site working conditions;

•  The branch has a valve design, which can replace the filter cartridge without stopping the machine;







Material

Filter Housing FRP
Water Intake FRP
Saddle Rubber
Strapping Stainless Steel/Rubber/Brass
Strap Bolt Stainless Steel
Sealing EPDM/Silicone/Fluorine Rubber



Operating Parameters

Design Pressure 0.6MPa / 1.0MPa
Operating Temperature -10℃~65℃
Filter Cartridge Number 1
Filter Cartridge Length 1028mm/1540mm
Filter Cartridge Diameter 152mm
Liquid Flow Direction Inside to Outside (Internal Pressure Type)
Design Flow 35m³/h



Ordering Information



P-FRP150                 01                  20                   K65                    S                    Z

Code Filter Number Filter Length Inlet / Outlet Connection Sealing Material Design Pressure
P-FRP150 01 (1 Round) 20 (20") K65 (DN65) S (Silicone) Z (0.6MPa)
    40 (40 ") K80 (DN80) E (EPDM) O (1.0MPa)
    60 (60 ") K100 (100) V (Viton) C (Customize)
        T (PTFE)



Equipment Application Range

(1) electronic industrial water: pure water, distilled water, integrated circuit, silicon chip, display tube, etc.;

(2) the pharmaceutical industry: water infusion, injection, tablet, biochemical products, cleaning equipment etc.;

(3) industrial process water: chemical recycling water, chemical products manufacturing, etc.;

(4) the electric power industry boiler water supply: high pressure boiler power system of power boiler, factories and mines;

(5) water for food industry: drinking water for drinking water, beverage, beer, liquor, health care products, etc.;

(6) sea water, brackish water desalination: Island, ship, offshore drilling platform, brackish water area;

(7) drinking water, bottled water, mineral water, drinking water, drinking water school district;

(8) water, other papermaking, electroplating, printing and dyeing process of automobile and home appliance coating, coated glass, cosmetics, fine chemicals etc.





Porduct details:



4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration 0

4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration 1



Company introduction:

Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.

The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.

4040 Fiberglass Membrane Cartridge Filter Housing Water Reverse Osmosis Prefiltration 2
