Product Details:
|
| OD: | 68.5mm | Length: | 10 Inches To 40 Inches |
|---|---|---|---|
| Material: | Polypropylene | Flow Rate: | 0.8-1.2 ㎡ |
| Removal Rating: | 99.99% | Max. Operating Temperature: | 82℃ |
| Brand: | Pullner | Original Place: | Shanghai |
| High Light: | Water PP Pleated Filter Cartridge,10inches Pleated Filter Cartridge,68.5mm Pp Filter Cartridge |
||

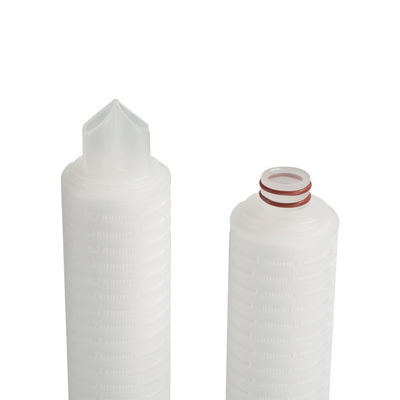

PP Pleated OD 68.5mm Water Pleated Filter Cartridge
This series pleated water filter using multi-layer nanofiber material, gradient structure design, high capacity. The size of the gradient aperture enables the filter cartridge to have a stronger fouling capacity, which can effectively improve the surface clogging problem and prolong the service life of the filter cartridge. Suitable for high suspended particles, colloidal substances, high viscosity liquids.
Specifications
| Item | Technical Parameters |
| Filter medium | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Core/Cage/End Cap | Polypropylene (PP) |
| Outside diameter | 2.7" (68.5mm) |
| Length | 10", 20", 30", 40" |
| Micron | 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration area | 0.4-0.7m² |
| Max. operating differential pressure | ΔP≤0.35MPa at25℃ |
| Max. operating differential pressure (reverse direction) | ΔP≤0.28MPa at60℃ |
| Max. operating temperature | 80℃(Stainless steel support is recommended for temperature exceeds 50℃) |
| Sterilization temperature | 30 minute cycles @121℃ |
| Max. operating pressure | 4bar/21℃ |
| 2.4bar/80℃ |
Material Constructions
| Filter media | Polypropylene (PP) |
| Support/Drainage | Polypropylene (PP) |
| Cage/Core/End caps | Polypropylene (PP) |
| Seal material | Silicone, NBR, Viton, EPDM |
Food and beverage: beer, wine filtration; juice and soda Filtration, oral liquid filtration; Additives, oil filtration
Water treatment: urban water supply, industrial water filtration; Power plant condensate filtration
Metal processing: cutting fluid and coolant filtration; Lubricating oil filtration
Fine chemicals: catalyst filtration; Filtration of cosmetics raw materials and finished products; Chemical auxiliary filtration
Petrochemical industry: aviation kerosene filtration; Diesel and fuel
