Product Details:
|
| Outside Diameter: | 69mm,65mm | Length: | 70" |
|---|---|---|---|
| Bottom Thread: | 3/8,M6,M8,M10 | Micron: | 1-10um |
| Filter Area: | 6.5m² | Maximum Operating Temperature: | 85℃ |
| Brand: | Pullner | Manufacture Place: | China |
| High Light: | 65mm Pleated Filter Cartridge,Power Plant Condensation Water Filter Element,Ro Pleated Water Filter Cartridge |
||

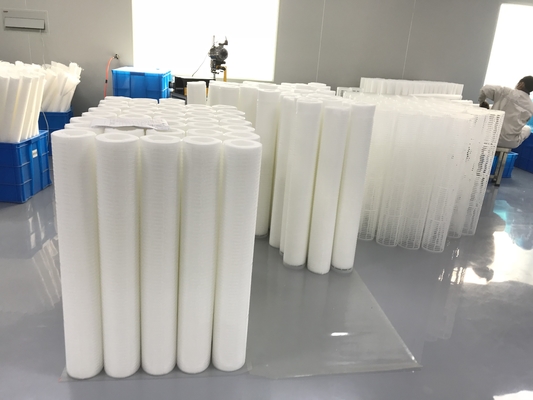

Pleated Filter Cartridge for Power plant condensation water filtration and Ro pre-filtration
PHFZ Polypropylene filter element is a fixed pore depth filter element with ultra-fine polypropylene fiber filter media as the filter medium, and the filter media meets the relevant FDA requirements. The filtration accuracy ranges from 0.1 um to 60 um, and its characteristics of low differential pressure, high flow rate and long service life make it the preferred product for prefiltration. The all-polypropylene structure offers stable performance and broad chemical compatibility.
Material Construction
| Filter Media | Polypropylene |
| Center Core | Reinforced Polypropylene |
Filter Performance
| Micron | 1-10um |
| Filter area | 6.5m² |
| Maximum Operating Temperature | 85℃ |
| Maximum Operating Dfferential Pressure | 3.0bar,60℃ |
| Maximum Operating Dfferential Pressure(Reverse direction) | 2.1bar,21℃ |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
