Product Details:
|
Filtration Area: | 0.4-0.7m³ | Outside Diameter: | 68.5mm |
---|---|---|---|
Flowing Hot Water Sterilization: | 85°C/30min | Maximum Operating Differential Pressure: | 4bar@25°C,2.6bar@25°C |
Mosit-heat Sterilization: | 121°C/30min | Maximum Operating Temperature: | 80℃ |
Manufacture Place: | ShangHai | Brand: | Pullner |
High Light: | Polypropylene Folding Filter Element,20um Pleated PP Filter Cartridge,Solvents Pleated Filter Cartridge |

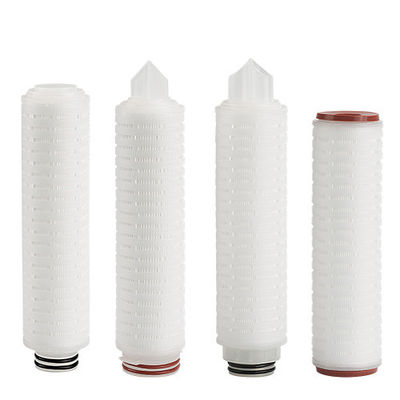

Pleated PP Filter Cartridge can filter all kinds of acids,alkalis and solvents
The discounted structure of PP folding filter element has a large filtration area, low starting pressure difference, fast flow rate, small filter volume and small cost. Since the prefiltration and final filtration are combined into one, the filter element has a large dirt-holding capacity. Longer service life than single-pore filter elements. Single pure polypropylene material, easy to judge its chemical compatibility. However, in addition to the above advantages, PP folding filter element also has small working pressure (generally can not exceed 0.3 Mpa, such as expansion phenomenon beyond pressure micropores), solid easy filtration, unsatisfactory backflushing effect and other disadvantages ,can filter most acids, alkalis and solvents.
Material Construction
Filter Media | Support/Drainage | End Caps/Core/Cage |
Polypropylene | Polypropylene | Polypropylene |
Filter Performance
Micron | 1-20um |
Filter area | 0.4-0.7m² |
Maximum Operating Temperature | 80℃ |
Maximum Operating Dfferential Pressure | 4bar@25°C 2.6bar@25°C |
Flowing hot water sterilization |
85°C/30min |
Flow Rate and Filtration Area
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
6"*20" | 15 | 40 | 2.6 |
6"*40" | 30 | 80 | 5.2 |
6"*60" | 45 | 120 | 7.8 |
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
