Product Details:
|
| Max Flow Rate: | 40":70m³/h;60":110m³/h | Micron: | 0.1-20μm |
|---|---|---|---|
| Filtration Area: | 7㎡/ 40" | OD: | 6"(152.44mm) |
| Suggestion Pressure For Filter Replacement: | 2.5bar | Length: | 20",40",60" |
| Brand: | Pullner | Original Place: | China ShangHai |
| High Light: | 40" High Temperature Water Filter,Condensate Treatment High Flow Cartridge,High Flow High Temperature Filter Cartridge |
||

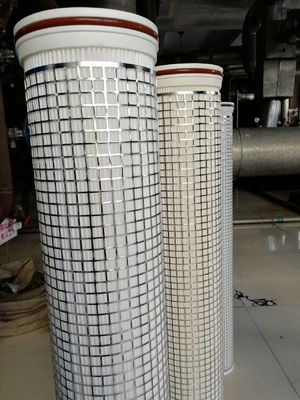

High Temperature High Flow Filter Cartridge can bear 120℃
It can resistant high flow filter cartridge adopts 6'' large diameter structure,single open end.Can be applied to food and beverage filtration.
Filter media and support layer are made of high temperature materaials,can be used under the condition of 120℃ during long term. Single end opening with large diameter structure,without inner core,the flow direction is inside to outside.
Material Construction
| Filter Media | PET |
| Support/Drainage | G 304 Stainless Steel Outer Cage |
| End Cap Material | Viton,Silicone,EPDM |
Performance
| Maximum Operation Temperatue | 120℃ |
| Max flow rate | 40'filter:70m³/h,60'filter:110m³/h |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 |
7.8 |
* High-temperature condensate treatment
* Various high-temperature process water treatment
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
