Pleated Chemical Contaminant Removal with Max Operating Temperature 65-80℃

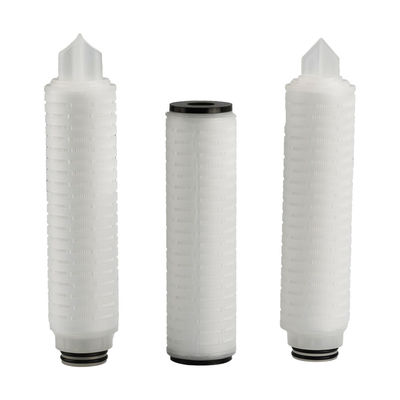

Pleated Filter Cartridge is a kind of filtration device designed to reduce the amount of particles, dust, and other contaminants in liquid or gas. It is made of Polypropylene, Polyester, and Nylon materials. It has a filtration rating from 0.1 to 100 microns, and its length can range from 5 to 40 inches. The sealing methods used are O-ring, heat-welded, and ultrasonic welding. This pleated filter cartridge is designed to provide high-efficiency filtration performance while maintaining excellent durability and structural integrity. It is suitable for a wide range of applications, such as air filtration, water filtration, fuel filtration, chemical filtration, and more. With its superior quality, Pleated Filter Cartridge is the perfect choice for any filtration needs.
Material Construction
| Filter Media |
Support/Drainage |
End Caps/Core/Cage |
| Polypropylene |
Polypropylene |
Polypropylene |
Filter Performance
| Micron |
1-20um |
| Filter area |
0.4-0.7m² |
| Maximum Operating Temperature |
80℃ |
| Maximum Operating Dfferential Pressure |
4bar@25°C
2.6bar@25°C |
|
Flowing
hot water sterilization
|
85°C/30min |
Flow Rate and Filtration Area
Size
(Diameter*Length) |
Design Flow
(m3/hr) |
Maximum Flow
(m3/hr) |
Filtration Area
(㎡) |
| 6"*20" |
15 |
40 |
2.6 |
| 6"*40" |
30 |
80 |
5.2 |
| 6"*60" |
45 |
120 |
7.8 |
Security filter of RO water treatment;
Fermentation air pre-filter;
Beer,wine,liquor and other food and beverage clarification and filtration;
Mineral water pre-filter and sophisticated filter;
Pre-filter of infusion,biological products and fermentataion broth;
Optical mirror resin monomer filter.
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of 26 million yuan. It has a 100,000-level purification workshop of 3,000 m² and a local thousand-level purification laboratory. It is a research and development, production and sales of microporous membrane filtration equipment, filtration system in one of the well-known enterprises.
The company's products are mainly used in Microelectronics, Fine chemicals, New energy, Seawater desalination, Biotech, Latoratory and other fields. Covering Liquid crystal panels, Semiconductor chips, High-purity chemicals, Raw materials, Condensate filtration, Reclaimed water reuse more than a dozen industries.
Our company has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
