The GFH series filter cartridge is constructed from ultra-fine glass fiber material with over 90% dust holding capacity, making it specifically designed for gas filtration applications. Its exceptional particle retention capability ensures high-efficiency gas particle removal.

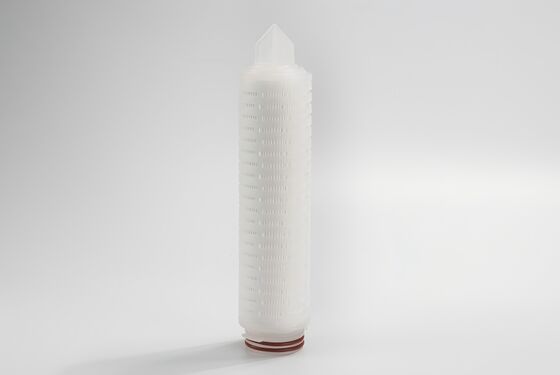

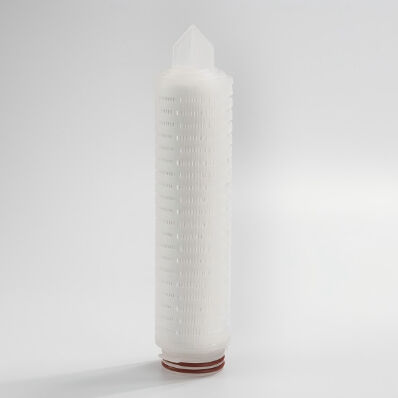

GFH High Dirt Content Gas Filter Glass Fiber Membrane Filter Cartridge
The GFH series filter cartridge is made of ultra-fine Glass fiber material with dust holding space more than 90%, which is especially suitable for gas filtration. The unique ability of particle retention ensures gas particle retention efficiency, is suitable for gas particle removal filtration.
Material Construction
| Filter Material |
Ultrafine glass fiber |
| Support/Drainage |
Polypropylene (PP) |
| Cage/Core/End Caps |
Core:SS304 or PP |
| Seal Material |
EPDM, Silicone, Viton, FEP |
Performance
| Filtration rating |
0.3μm, 0.5μm, 1μm, 3μm, 5μm |
| Maximum Operating Temperature |
50℃(6 Months) |
| Maximum Operating Differential Pressure |
4bar/21℃
2.4bar/80℃
|
Biological Safety
| Every 10 inches of dissolved matter |
＜30mg |
| Endotoxin |
0.25EU/ml |
Ordering Information
GFH 0002 10 C1 E
| Series |
Micron |
Length |
End Cap Type |
Seal Material |
| GFH |
0030 |
=0.3μm |
05 |
=5" |
C1 |
=226/Spear |
E |
=EPDM |
|
0050 |
=0.5μm |
10 |
=10" |
C3 |
=222/Spear |
S |
=Silicone |
|
0100 |
=1.0μm |
20 |
=20" |
C5 |
=222/Flat |
V |
=Viton |
|
0300 |
=3.0μm |
30 |
=30" |
C6 |
=226/Flat |
P |
=FEP |
|
0500 |
=5.0μm |
40 |
=40" |
C9 |
=DOE |
|
|
