PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity
PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity
PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

Large Image :  PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

Product Details:
Place of Origin: CHINA
Brand Name: PULLNER
Certification: ISO 9001
Model Number: PLX
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: To be negotiated
Packaging Details: wooden box package
Delivery Time: 7-10 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 100 pcs per day
Contact Now

PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity

Description
Highlight:

PLX Series String Wound Filter Cartridge

,

Large Pollutant Holding Capacity Filter Cartridge

,

String Wound Honeycomb Structure Filter Cartridge

PLX Series String Wound Filter Cartridge

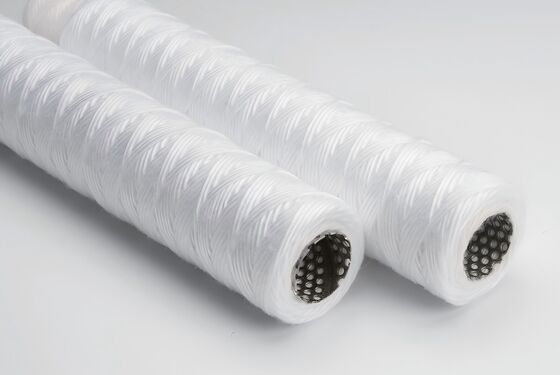

The PLX series filter cartridge is engineered using textile fibers—including polypropylene, absorbent cotton, or glass fiber—manufactured through a specialized winding process. These fibers are tightly wound around a porous framework constructed from either polypropylene (PP) or stainless steel (SS) porous tubes.
This unique manufacturing process creates a honeycomb filtration structure characterized by sparse outer layers and dense inner layers, providing exceptional filtration performance for industrial applications.
Key Performance Features:
  • Effective removal of suspended solids from fluids
  • Efficient filtration of rust particles and various impurities
  • Minimal pressure drop across the filter media
  • High contaminant holding capacity for extended service life
  • Robust construction suitable for demanding industrial environments

Material Construction

Filter media

PP:Polypropylene

CO:Degreasing Cotton

GF:Glass Fiber

FO:Organic Fiber
Center Core PP, Stainless Steel 304, 316L



PLX series filter cartridge is made of textile fiber (polypropylene, absorbent cotton or glass fiber) according to a specific process, tightly wound on a porous framework (PP or SS porous tube) to form a honeycomb structure with sparse outside and dense inside, which can effectively filter suspended solids in the fluid, Rust, particles and other impurities, with the characteristics of small pressure drop and large pollutant holding capacity.


Performance

Maximum Operating Temperature

PP:60℃

CO:120℃

GF:200℃

FO:120℃
Maximum Operating Differential Pressure 4.0bar
Recommend change-out Differential Pressure 2.0bar



Ordering Information

     PLX                                            A3                                              0500                                40

Series Filter Layer/Center core Material Micron Length
PLX A1=PP/PP 0100 =1.0μm 05 =5"

A2=PP/SS(Stainless Steel) 0300 =3.0μm 10 =10"

A3=Degreasing Cotton/SS 0500 =5.0μm 20 =20"

A4=Glass Fiber/SS 1000 =10μm 30 =30"

A5=FO/SS 2500 =25μm 40 =40"


7500 =75μm 50 =50"


10000 =100μm 60 =60"




15000 =150μm 70 =70

PLX Series String Wound High Flow Filter Cartridge with Honeycomb Structure for Small Pressure Drop and Large Pollutant Holding Capacity 0

FAQ



1. Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.



2. Q: May I have samples?

A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.



3. Q: Can you make customized products?

A: Yes, of course. if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.



4. Q: Can I use our own designed package?

A: Yes, size, color, logo and packaging style all can be customized.



5. Q: What's your MOQ?

A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.



6. Q: I am a small business owner, Can I buy from you?

A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
