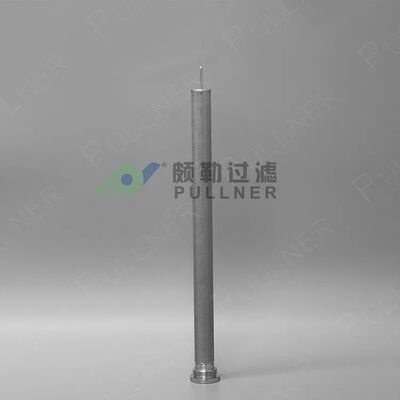

20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications

20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications
20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications
20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications 20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications 20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications 20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications 20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications

Large Image :  20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications

Product Details:
Place of Origin: Shanghai,China
Brand Name: Pullner
Certification: ISO9001/ISO 14001/ISO 45001
Model Number: PHSW
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: The plastic packed and put into the carton
Delivery Time: 10 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500 pcs per week
Contact Now

20inch Stainless Steel Filter Cartridge with High Temperature and Pressure Resistance for Industrial Applications

Description
Highlight:

20inch Stainless Steel Filter Cartridge

,

Multilayer Sintered Wire Mesh Filter Cartridge

Product Overview

PHSF series stainless steel pleated filter cartridge is made of stainless steel fiber felt by pleating wave shape, with big filtration area, high dirt holding capacity, high corrosion resistance, high pressure, high temperature. Customized on request.

Key Specifications
Parameter Value
Model Number PHSW
Material Stainless Steel
Filter Connector Thread
Filtration Grade PRE Filter
HS Code 8421999090
Features & Benefits
  • All stainless steel construction
  • Depth porous material
  • Stainless steel design
  • High dirt holding, long usage life
  • Corrosion resistance, high pressure, high temperature
  • All-welded construction, no media loss
Technical Specifications
Component Specification
Core/Outer Guard SUS 304/316L Stainless steel porous plate
Filter Medium Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh
Filter net: Required accuracy of stainless steel wire mesh
Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh
End Caps SUS 304/316L Stainless steel
Max. Operating Differential Pressure 5.0 bar
Max. Operating Temperature 480℃
Dimensions & Filter Area
Standard OD Standard Length Filter Area
65mm
Customized on request		 5in. (127mm) 0.096 m²
65mm
Customized on request		 10in. (254mm) 0.19 m²
65mm
Customized on request		 20in. (508mm) 0.38 m²
65mm
Customized on request		 30in. (762mm) 0.57 m²
65mm
Customized on request		 40in. (1016mm) 0.76 m²
