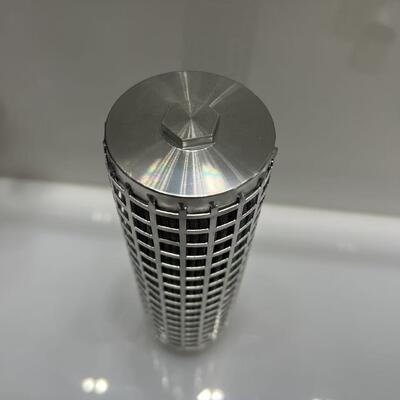

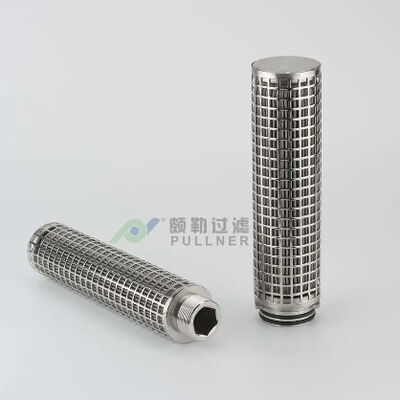

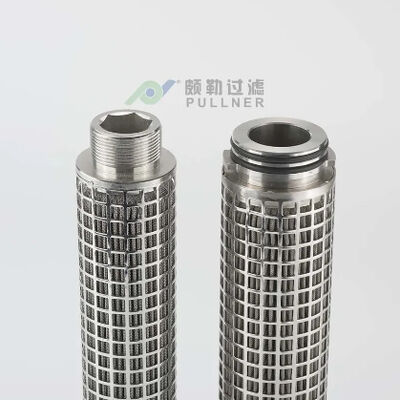

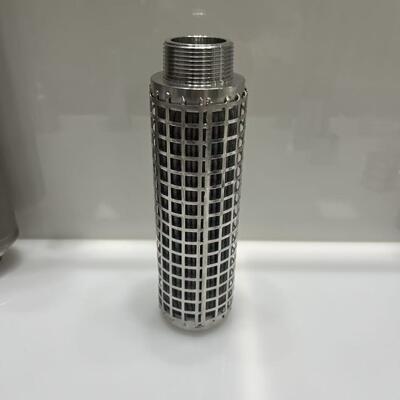

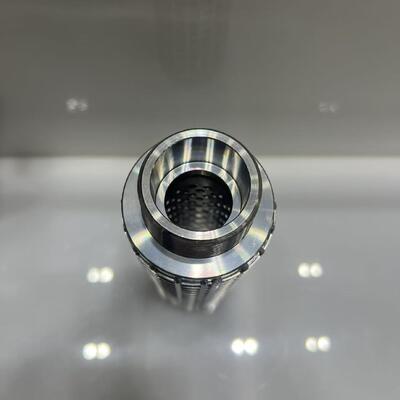

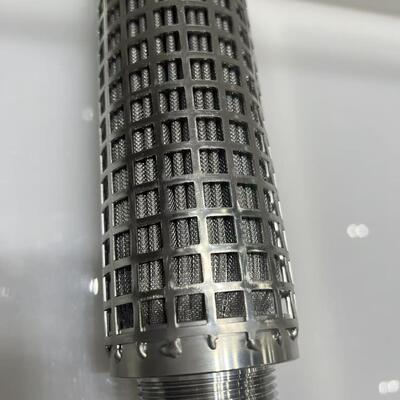

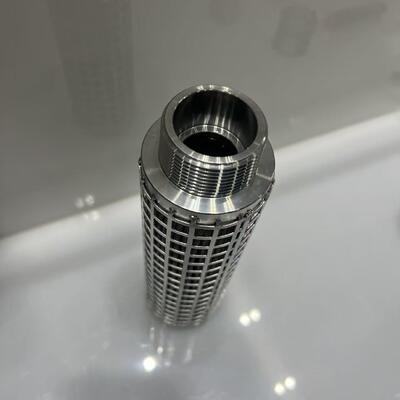

High Temperature Resistant 316L Stainless Steel Fiber Felt Pleated Filter Cartridge with Large Filtration Area

Large Image : High Temperature Resistant 316L Stainless Steel Fiber Felt Pleated Filter Cartridge with Large Filtration Area

Product Details:

Place of Origin:	Shanghai,China
Brand Name:	PULLNER
Certification:	ISO 9001/ISO 54001/ISO 14001
Model Number:	PHSF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Wooden carton after poly bag.
Delivery Time:	20-25 work days
Payment Terms:	D/A,L/C,D/P,T/T,Western Union
Supply Ability:	100pcs per month

Contact Now

High Temperature Resistant 316L Stainless Steel Fiber Felt Pleated Filter Cartridge with Large Filtration Area

Description

Highlight:

Stainless Steel Fiber Felt Pleated Filter Cartridge

High temperature

316L 304

PHSF Stainless Steel Pleated Felt Filter Cartridges are constructed with stainless steel sintered felt and shaped during the pleating process. These filters feature a large filtration area for optimal performance. The stainless steel sintered felt is manufactured from stainless steel fiber, which is sintered under high temperature to form a porous depth filtration material.

PHFS Filter Cartridges feature graded pore size distribution from coarse upstream to fine downstream, resulting in higher dirt holding capacity and extended service life.

Technical Specifications

Core/Outer Guard	SUS 304/316L Stainless steel porous plate
Filter Medium	Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh Filter net: Required accuracy of stainless steel wire mesh Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh
End Caps	SUS 304/316L Stainless steel
Max. Operating Differential Pressure	5.0 bar
Max. Operating Temperature	480℃

Standard Dimensions

Standard OD	Standard Length	Filter Area
65mm Customized on request	5in. (127mm)	0.096 m²
65mm Customized on request	10in. (254mm)	0.19 m²
65mm Customized on request	20in. (508mm)	0.38 m²
65mm Customized on request	30in. (762mm)	0.57 m²
65mm Customized on request	40in. (1016mm)	0.76 m²

Company Profile

Shanghai Pullner Filtration Technology Co., Ltd.

Our company operates a domestic first-class physical and chemical laboratory equipped with advanced testing instrumentation including:

Mass spectrometer (ICP-MS)
Gas chromatography (GC-MS)
Liquid chromatography (LC-MS)
Scanning electron microscope (including EDS energy spectrum)
Particle counter (5 sets)
Cartridge efficiency test bench (IFTS, France)
Membrane pore size distribution instrument
Online particle detector
Membrane test bench
Permeability tester

Our comprehensive testing capabilities enable performance evaluation of filter materials, cartridges, and filtration equipment, as well as technical support for customer production line filtration challenges.
