10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance

10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance
10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance
10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance

Large Image :  10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance

Product Details:
Place of Origin: CHINA
Brand Name: PULLNER
Certification: ISO9001/ISO45001/ISO14001
Model Number: PHSV
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Export standard packaging
Delivery Time: 20-35 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500 pieces per month
Contact Now

10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance

Description
Highlight:

10'' Metal Wedge Wire Filter Cartridge

10" Metal Wedge Wire Filter Cartridge - PHSV Series

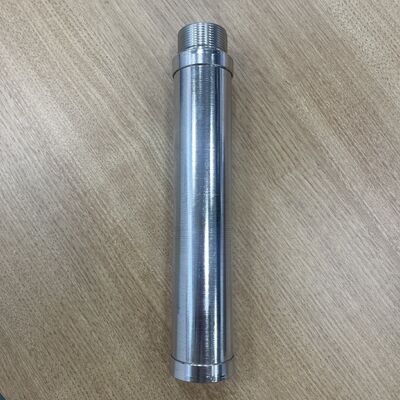

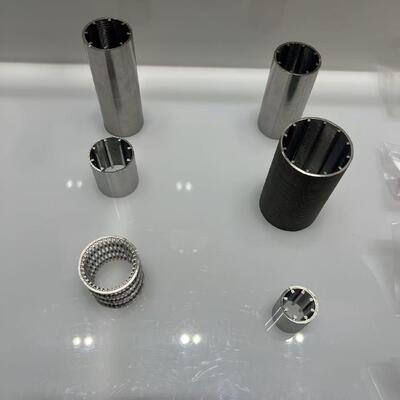

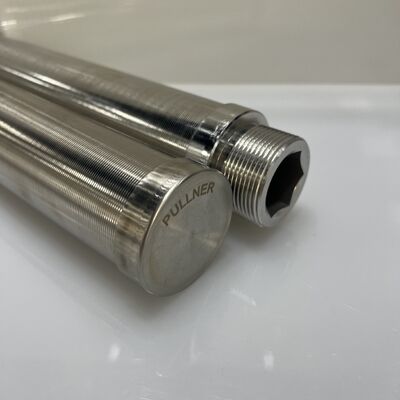

The PHSV series metal wedge wire filter cartridge is manufactured through spiral welding of rib and V-shaped wire on specialized welding equipment. This industrial-grade filtration solution combines durability with precision engineering.

Key Features and Benefits
  • High mechanical strength to withstand greater pressure
  • Uniform aperture for consistent filter cake formation and effective backwash regeneration
  • Wedge-shaped filter gap to enhance backwash regeneration capacity
  • High pressure, high temperature, anti-aging, and corrosion resistant for various liquid types
  • Almost two-dimensional filter design prevents particle accumulation and ensures efficient backwash energy gathering
Technical Specifications
Filter Media 316L/321/304 Stainless Steel, Special materials can be customized
Filtration Micron 20μm, 25μm, 30μm, 50μm, 60μm, 100μm, 150μm
Outer Diameter (OD) (mm) 25.4, 33, 38, 50, 57, 76, 89, 105, 117, 130, 850mm, Customized
10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 0
Manufacturer Profile
10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 1
Shanghai Pullner Filtration Technology Co., Ltd.

Our company operates a domestic first-class physical and chemical laboratory equipped with advanced testing instruments including mass spectrometer (ICP-MS), gas chromatography (GC-MS), liquid chromatography (LC-MS), scanning electron microscope (including EDS energy spectrum), particle counters, cartridge efficiency test bench (IFTS, France), membrane pore size distribution instrument, online particle detector, membrane test bench, permeability tester, and cartridge testing equipment. We provide comprehensive testing and evaluation services for filter materials, cartridges, and filtration equipment, and assist customers in analyzing complex filtration challenges on production lines.

Quality Certifications

10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 2
10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 3
10'' Metal Wedge Wire Filter Cartridge - PHSV Series with High Mechanical Strength, Uniform Aperture, and Corrosion Resistance 4
