10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration

10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration

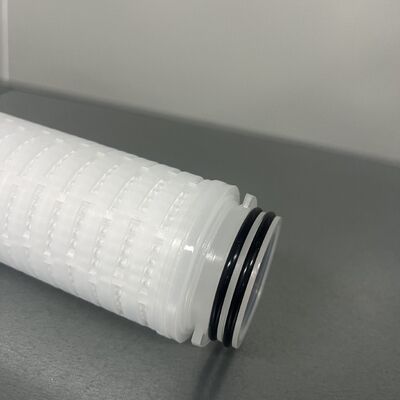

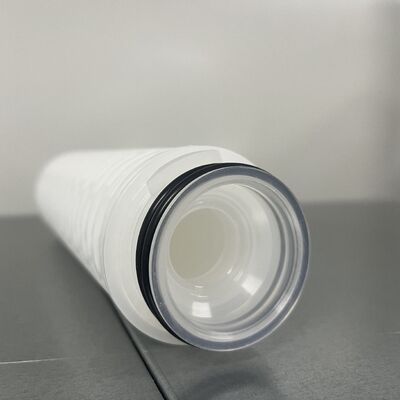

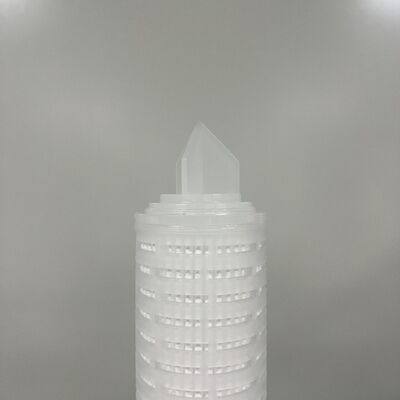

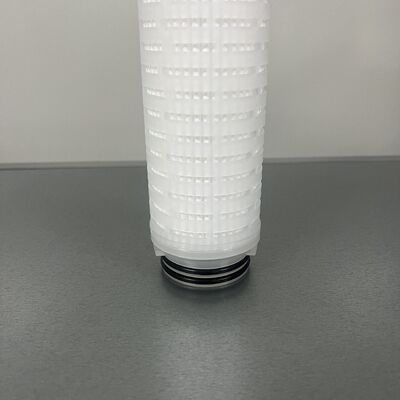

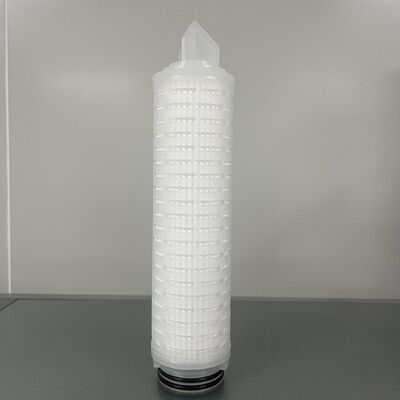

Large Image :  10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration

Product Details:
Place of Origin: CHINA
Brand Name: PULLNER
Certification: ISO9001/ISO14001/ISO45001
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Carton box after poly bag, 50pcs per carton.
Delivery Time: 7-9 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100pcs per day
Contact Now

10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration

Description
Highlight:

10inch PP Pleated Filter Cartridge with Polypropylene Core

10inch PP Pleated Filter Cartridge with Polypropylene Core
High-performance PP pleated filter cartridge with polypropylene core designed for industrial filtration applications.
Applications
  • Food and Beverage: Beer, wine, juice, soda, oral liquid, additives, and oil filtration
  • Water Treatment: Urban water supply and industrial water filtration; Power plant condensate filtration
  • Metal Processing: Cutting fluid and coolant filtration; Lubricating oil filtration
  • Fine Chemicals: Catalyst filtration; Cosmetics raw materials and finished products filtration; Chemical auxiliary filtration
  • Petrochemical Industry: Aviation kerosene filtration; Diesel and fuel filtration
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 0
Technical Specifications
Item Technical Parameters
Filter Medium Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Core/Cage/End Cap Polypropylene (PP)
Outside Diameter 2.7" (68.5mm)
Length 10", 20", 30", 40"
Micron 0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um
Filtration Area 0.4-0.7m²
Max. Operating Differential Pressure ΔP≤0.35MPa at 25℃
Max. Operating Differential Pressure (Reverse Direction) ΔP≤0.28MPa at 60℃
Max. Operating Temperature 80℃ (Stainless steel support recommended for temperatures exceeding 50℃)
Sterilization Temperature 30 minute cycles @121℃
Max. Operating Pressure 4bar/21℃, 2.4bar/80℃
Material Construction
Filter Media Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Cage/Core/End Caps Polypropylene (PP)
Seal Material Silicone, NBR, Vit, EPDM
Company Profile
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 1
Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.
Domestic Offices in China
Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China
Global Branches and Offices
UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 2 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 3
Packaging
Professional packaging solutions to ensure product integrity during transportation and storage.
Certifications
10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 4 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 5 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 6 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 7 10inch PP Pleated Filter Cartridge with Polypropylene Core and 68.5mm OD for High Flow Filtration 8
Frequently Asked Questions
What is the brand name of this product?
The brand name is PULLNER.
What is the model number of this product?
The model number is PLZ.
Where is this product manufactured?
This product is made in China.
What is the main function of this product?
The main function of this product is to filter beverages.
What is the recommended usage time for this product?
The recommended usage time for this product is 6-12 months.
