Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity

Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity
Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity

Large Image :  Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity

Product Details:
Place of Origin: SHANGHAI,CHINA
Brand Name: PULLNER
Certification: ISO19001/ISO45001/ISO14001
Model Number: PHSF
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: negotiate
Packaging Details: wooden carton after poly bag
Delivery Time: 20-35 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100pcs per month
Contact Now

Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity

Description
Highlight:

Stainless Steel Fiber Felt Pleated Filter Cartridge

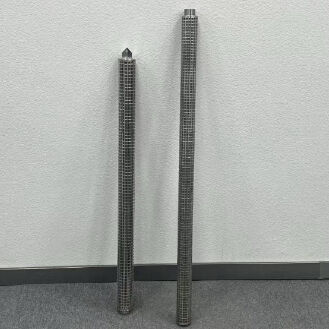

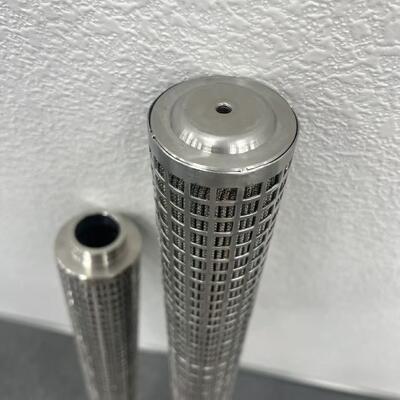

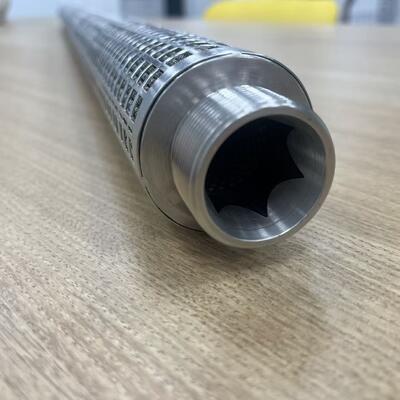

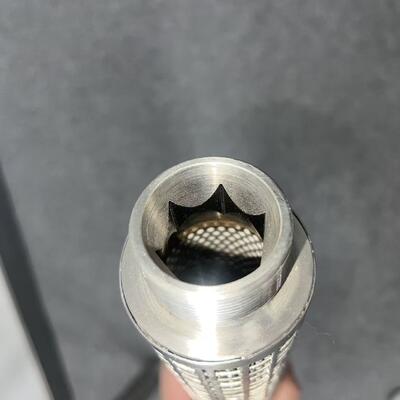

PHSF Stainless Steel Pleated Felt Filter Cartridges are constructed with stainless steel sintered felt and shaped during the pleating process. These filters feature a large filtration area for optimal performance. The stainless steel sintered felt is manufactured from stainless steel fiber, which is sintered under high temperature to form a porous depth filtration material.
PHFS Filter Cartridges feature graded pore size distribution from coarse upstream to fine downstream, resulting in higher dirt holding capacity and extended service life.
 Stainless Steel Fiber Felt Pleated Filter Cartridge with High Dirt Holding Capacity 0
Product Specifications
Core/Outer Guard SUS 304/316L Stainless steel porous plate
Filter Medium Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh
Filter net: Required accuracy of stainless steel wire mesh
Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh
End caps SUS 304/316L Stainless steel
Max. operating differential pressure 5.0bar
Max. operating temperature 480℃
Standard Dimensions & Filter Area
Standard OD Standard Length Filter Area
65mm
Customized on request		 5in. (127mm) 0.096m²
65mm
Customized on request		 10in. (254mm) 0.19 m²
65mm
Customized on request		 20in. (508mm) 0.38 m²
65mm
Customized on request		 30in. (762mm) 0.57 m²
65mm
Customized on request		 40in. (1016mm) 0.76 m²
