40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance

40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance
40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance
40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance 40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance 40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance 40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance 40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance 40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance

Large Image :  40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance

Product Details:
Place of Origin: Shanghai, China
Brand Name: PULLNER
Certification: ISO9001,ISO14001,ISO45001
Model Number: PHSW
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Export standard packaging
Delivery Time: 15-25 working days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 100pcs per day
Contact Now

40'' Length PHSW Series Stainless Steel Pleated Filter Cartridge with High Temperature and Corrosion Resistance

Description
Highlight:

Large filtration area & high dirt holding capacity

,

High temp pressure & corrosion resistant stainless steel structure

,

Fully customized specifications for industrial filtration

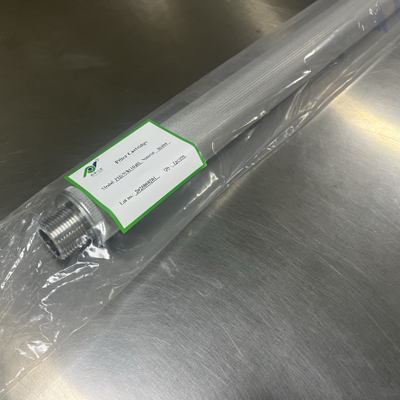

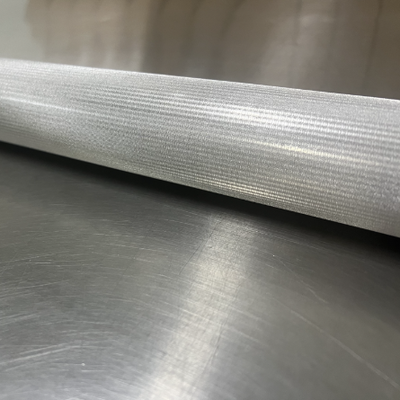

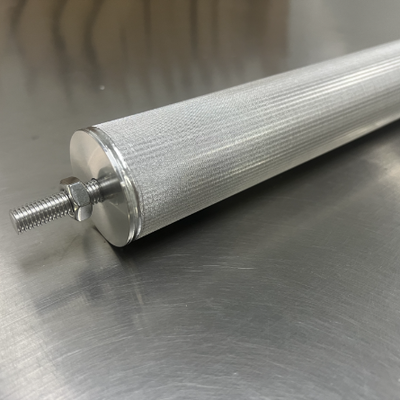

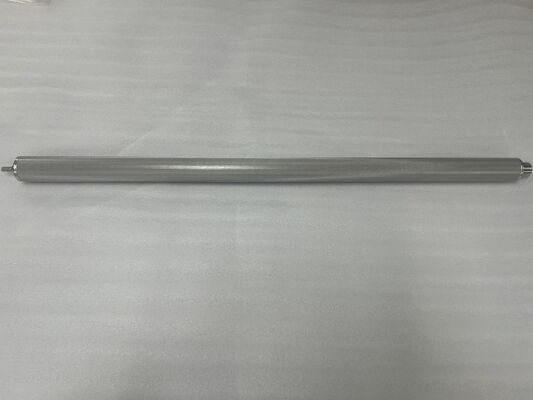

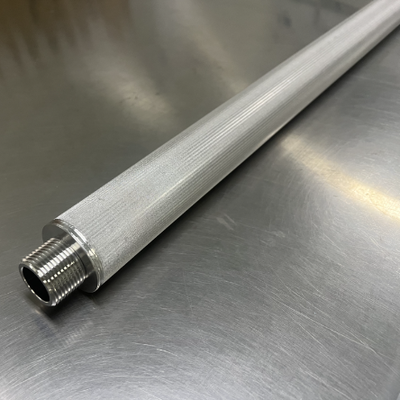

40" Length PHSW Series Stainless Steel Fiber Felt Pleated Filter Cartridge
The PHSF series stainless steel pleated filter cartridge is manufactured from stainless steel fiber felt formed into a pleated wave shape. This design provides a large filtration area, high dirt holding capacity, and excellent corrosion resistance, high pressure tolerance, and high temperature performance. Custom configurations available upon request.
Features and Benefits
  • All stainless steel construction
  • Depth porous material design
  • High dirt holding capacity with extended usage life
  • Excellent corrosion resistance, high pressure, and high temperature tolerance
  • All-welded construction prevents media loss
Specifications
Core/Outer Guard SUS 304/316L Stainless steel porous plate
Filter Medium Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh
Filter net: Required accuracy of stainless steel wire mesh
Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh
End caps SUS 304/316L Stainless steel
Max. operating differential pressure 5.0 bar
Max. operating temperature 480℃
Standard OD Standard Length Filter Area
65mm
Customized on request		 5 in. (127mm) 0.096 m²
10 in. (254mm) 0.19 m²
20 in. (508mm) 0.38 m²
30 in. (762mm) 0.57 m²
40 in. (1016mm) 0.76 m²
Company Profile
Shanghai Pullner Filtration Technology Co., Ltd.

Our company operates a domestic first-class physical and chemical laboratory equipped with mass spectrometer (ICP-MS), gas chromatography (GC-MS), liquid chromatography (LC-MS), scanning electron microscope (including EDS energy spectrum), particle counters, cartridge efficiency test bench (IFTS, France), membrane pore size distribution instrument, online particle detector, membrane test bench, permeability tester, and cartridge testing equipment. We can test and evaluate the performance of filter materials, cartridges, and filtration equipment, and also assist customers in analyzing challenging filtration problems on production lines.
Certifications
40'' Length Metal Multilayer Sintered Wire Mesh Filter Cartridge 40'' Length Metal Multilayer Sintered Wire Mesh Filter Cartridge 40'' Length Metal Multilayer Sintered Wire Mesh Filter Cartridge
Frequently Asked Questions
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our many years experience in the industry.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course. If you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What's your MOQ?
A: Normally, 100PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
