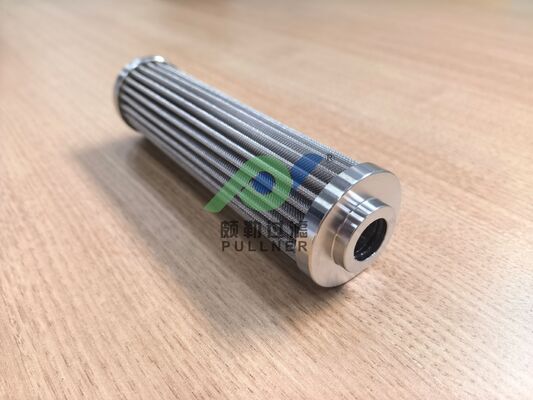

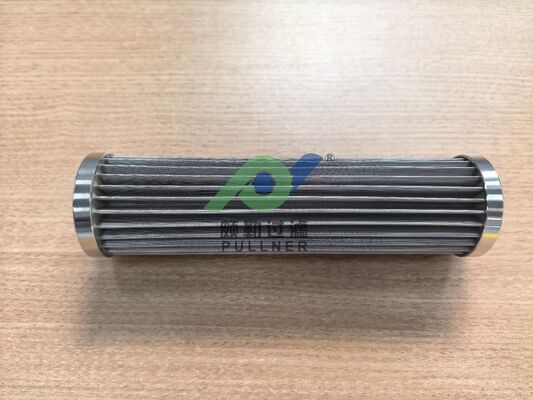

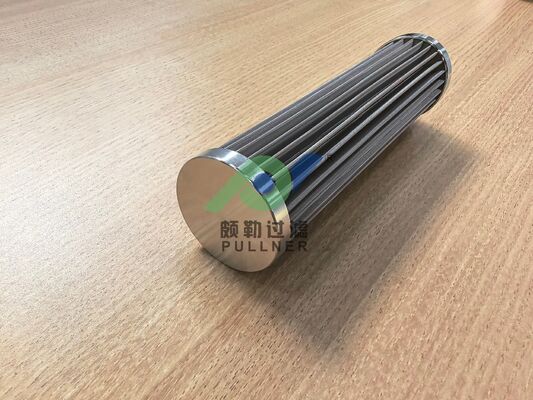

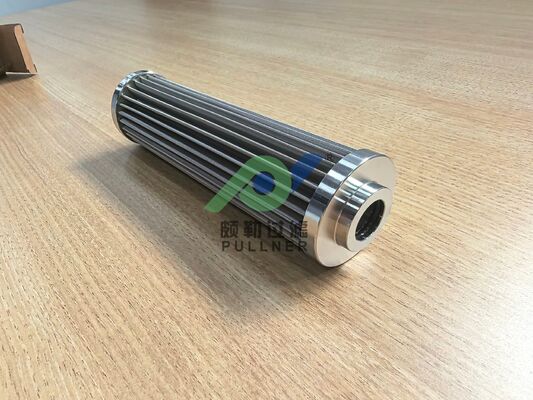

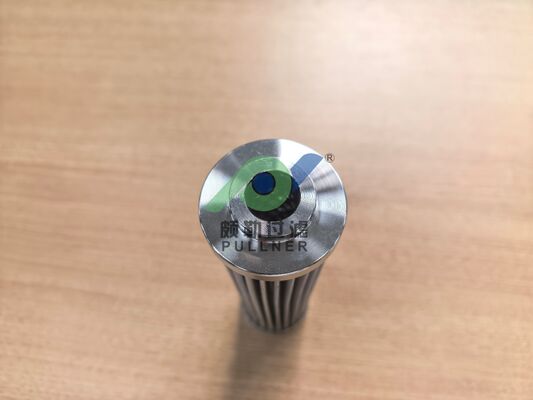

Custom 316L Stainless Steel Pleated Oil Filter Cartridge – 480°C Max Temperature, 5 Bar Differential Pressure

Customized PHSC 316L Stainless Steel  Pleated Oil  Filter Cartridge

Engineered for the toughest industrial filtration environments where extreme temperatures, aggressive chemicals, and high-pressure conditions challenge conventional filters.

The PHSC series pleated filter cartridges are constructed entirely from 316L stainless steel, featuring high-performance sintered fiber felt media. The precision pleated design provides a large filtration area within a compact structure, ensuring efficient particle removal and stable flow performance.

Its graded pore structure, with coarser upstream and finer downstream layers, enhances dirt-holding capacity while minimizing pressure drop. The robust stainless steel construction offers excellent mechanical strength, corrosion resistance, and long service life. The elements are cleanable and reusable under suitable operating conditions, helping reduce maintenance and replacement costs.

Typical applications include hydraulic oil filtration, lubricating oil systems, industrial oil purification, fuel filtration, and filtration of process fluids in petrochemical and chemical processing industries. The PHSC series is particularly suitable for demanding applications requiring reliable filtration, high dirt-holding capacity, and reusable filter elements.

Key Features:

• All 316L Stainless Steel Construction – Fully welded design with sintered fiber felt media for excellent structural integrity and minimal risk of media shedding.
• High-Temperature Resistance – Maximum operating temperature up to 480°C under specified conditions, suitable for hot oil and high-temperature process fluid filtration.
• Excellent Corrosion Resistance – Resistant to a wide range of industrial oils, solvents, and compatible chemical fluids.
• High Dirt-Holding Capacity – Graded pore structure provides effective depth filtration and extended service intervals.
• Large Filtration Area – Precision pleated design supports high flow rates with low initial pressure drop.
• Cleanable & Reusable – Supports suitable cleaning methods for extended service life and reduced replacement costs.
• Differential Pressure Rating – Maximum allowable differential pressure of 5.0 bar under specified operating conditions.

1. Dimensions & Filtration Area:

2. Length	Filtration Area
   5 inch (127 mm)	0.096 m²
   10 inch (254 mm)	0.19 m²
   20 inch (508 mm)	0.38 m²
   30 inch (762 mm)	0.57 m²
   40 inch (1016 mm)	0.76 m²

3. Technical Specifications

4. Core/Outer Guard	SUS 304/316L Stainless steel porous plate
   Filter Medium	Upstream Support: 30 mesh or 40 mesh stainless steel wire mesh Filter net: Required accuracy of stainless steel wire mesh Downstream Support: 30 mesh or 40 mesh stainless steel wire mesh
   End Caps	SUS 304/316L Stainless steel
   Max. Operating Differential Pressure	5.0 bar
   Max. Operating Temperature	480℃

5. Standard Dimensions

6. Standard OD	Standard Length	Filter Area
   65mm Customized on request	5in. (127mm)	0.096 m²
   65mm Customized on request	10in. (254mm)	0.19 m²
   65mm Customized on request	20in. (508mm)	0.38 m²
   65mm Customized on request	30in. (762mm)	0.57 m²
   65mm Customized on request	40in. (1016mm)	0.76 m²

7. Material Properties

8. No.	Liquid Accuracy(um)	Gas Accuracy (um)	Porosity(%)	Average Air-permeability (L/dm².min)	Liquid Flow Rate(m³/h)
   1	5	1	67	5.0	34
   2	10	2	73	7.8	108
   3	15	3	75	7.8	180
   4	20	10	82	13	265
   5	25	16	78	19	325
   6	30	20	78	--	450
   7	40	30	75	--	620
   8	60	45	85	--	1350

9. Remarks: Bubble pressure test compliance with ISO 4003
   Air permeability test compliance with ISO 4022, air pressure of the average permeability is 200Pa.
   Test Conditions: Liquid Viscosity=1 CP﹒S, the test filter OD is 65mm, 10inches length, under 1.0bar pressure

10. Applications:

    Chemical processing, high-temperature steam filtration, RO pre-filtration, condensate polishing, power generation, food & beverage, oil & gas produced water treatment.

11. Quality Assurance:
12. Manufactured in ISO 9001/14001/45001 certified 10,000 m² cleanroom facility. Custom lengths, micron ratings, and end-cap configurations available upon request.

13. Company Profile



    Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of RMB 26 million. The company operates a Class 100,000 cleanroom workshop (3,000 m²) and an on-site Class 1,000 clean laboratory, integrating R&D, manufacturing, and sales of microporous membrane filtration equipment and filtration systems.

    Pullner products are widely applied in microelectronics, fine chemicals, new energy, seawater desalination, biotech, and laboratory fields, including LCD panels, semiconductor processing, high-purity chemicals, condensate filtration, and reclaimed water reuse.

    The company holds ISO9001 / ISO14001 / ISO45001 certificates, is recognized as a high-tech enterprise, and owns multiple patents. Pullner is also an approved vendor of Saudi Aramco.



14. Frequently Asked Questions

    Q1: Who is the manufacturer and brand?

    A1: Manufacturer: Shanghai Pullner Filtration Technology Co., Ltd. / Brand: Pullner.

    Q2: Can you provide samples?

    A2: Yes. We can provide 1-2 free samples for evaluation. Buyers only cover shipping. (Free samples are typically supported for future formal orders.)

    Q3: What is the delivery time?

    A3: Usually 5-10 working days, depending on order quantity.

    Q4: Is the filtration rating nominal or absolute?

    A4: Standard products are nominal. Absolute-rated filters can be customized based on your application.

    Q5: Which brands can your filters replace?

    A5: Compatible replacements include major brands such as PALL, 3M, PARKER, and others.

    Q6: What is the MOQ?

    A6: Standard MOQ is 1 piece (factory direct). For certain models or customized specs, MOQ may vary.
