|Place of Origin:||Shanghai China|
|Minimum Order Quantity:||1|
|Packaging Details:||Individual packaged in carton box after poly bag, then 4pcs per carton. 15 cartons per pallet.|
|Delivery Time:||3-7 days|
|Payment Terms:||T/T, Western Union, D/A, D/P, L/C, MoneyGram|
|Supply Ability:||1500pcs per week|
|OD:||6"(152mm)||Length:||10", 20", 30", 40"|
|Material:||PP||Filtration Rating:||1um, 5um, 10um, 15um, 20um, 50um, 70um, 100um|
3M High Flow Filter Cartridge,
PP High Flow Filter Cartridge
Factory Hot Sales China filter manufacturer High Flow PP Pleated Filter Cartridge size 1 2 replacement

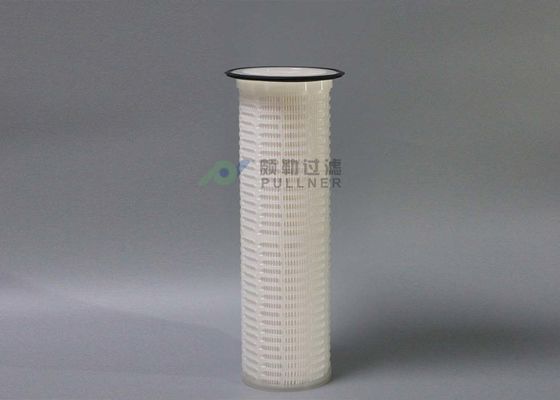

PHBG Series High Flow Filter Cartridge is made of diameter 6"(152mm), single open end, port size 180mm, without inner core, inside to outside flow direction. All connection use thermal welding, no any bonding agent, wide range of chemical compatibility, can be applied to various fields. It’s designed to replace the filter bag.
|Length||10”, 20”, 30”, 40” (Customized on request)|
Material of Construction
|Model||Filter Media||Support/Drainage||End Caps||Seals Material|
|PP||Pleated Depth Polypropylene||Polypropylene||Glass Fiber Reinforced Polypropylene||NBR,Silicone, EPDM,Viton|
|GF||Glass Fiber/Polyester||Polyester||Glass Fiber Reinforced Polypropylene||NBR,Silicone, EPDM,Viton|
|Micron||1m, 5μm, 10μm, 20μm, 50μm, 100μm, 150μm, 200μm|
|Max. operating temperature||
Pleated PP: 82℃
Pleated glass fiber: 121℃
Max. operating differential pressure
(Inside to outside flow direction)
Pleated pp: 3.44bar@82℃
Pleated glass fiber: 3.44bar@121℃
|Suggestion pressure for filter replacement||2.5 Bar @ 20℃|
General purpose: RO Pre-filtration, Seawater desalination RO pre-treatment;
Power generation: Condensate re-circulation, Hot water recovery, Supplementary water, Coolant;
Food and Beverage: Bottled water, High Fructose, Edible oil, Soft drinks, and milk, Potable water;
Petrochemical: Various solvents, Ink, plating fluids, Paints and coatings, Refineries
Outer cage is one piece, have high strength;
Inside to outside flow direction keeps all the contamination catched;
High dirt holding capacity, long service life;
Less cartridge change out help customers save the labor cost;
Easy install and change out;
Range chemical compatibility for different applications;
Gradient aperture ensure excellent dirt holding capacity and low flow resistance.
Pullner Production process:
Our production strictly follow these procedures: Pleating → Seam welding → Assembly → Trimming → Welding → Finished products → Packaging
In the purification workshop, workers need to wear purification clothes, purification shoes, masks, hats and gloves. The purification workshop has high requirements on the production environment, which can ensure the cleanliness and safety of the products, and can meet the filtration requirements of food and beverage, biopharmaceutical and other industries.
It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.
Shanghai Pullner Filtration Technology Co., Ltd. is a well-known enterprise integrating R&D, production and sales of micro membrane filtration equipment and filtration systems.
Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.
