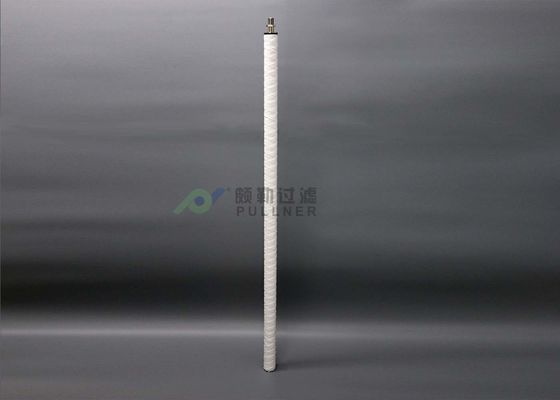

Power Plant Iron Removal Water Filter Cartridge Conpetitive Price Free Sample

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: ISO 9001
Model Number: PHFX
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized wooden carton after poly bag. 200pcs per carton.
Delivery Time: 7-12 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs per month
Detail Information
OD: 50mm, Customized Special Diameter ID: 28mm
Length: 70", 60" Material: PP, Glass Fiber, Cotton
Filtration Rating: 1um, 2um, 4um, 5um, 10um Recommend Flow Rate: 2.5m³/h/70"
MOQ: 1 Piece Delivery Time: 7-12 Days
OEM: Yes Sample: Free
High Light:

water polishing filter

,

wound water filter cartridges


Product Description

Power Plant Iron Removal Water Filter Cartridge Conpetitive Price Free Sample





Performance Specifications



Dimensions(nominal):

OD 50mm, 60mm
ID 25mm, 28mm
Length 70"(1778mm), 60" (1524mm)



Parts Material

Filter Media Polypropylene, Cotton, Glass Fiber
Support Core Stainless steel 304/316



Filter Performance

Micron 1um, 5um(operating filter), 10um ( start-up filter)
Max. Operating temperature 85℃
Max. Operating differential pressure 2.45Bar
Design Flow Rate 2.9m³/h-3.2m³/h
Connection Type Thread
Connection thread size M33×1.5, M33×2, G1", 1 3/16〃-24 BSW
Screw size M6, M8, M10



General Description

PHFX Series String Wound Filter Cartridge is depth filtration type, made of stainless steel core, with yarn (polypropylene, cotton, glass fiber) according to a specific process, tightly wrapped on the porous stainless steel core, formed loose outer layers and tight inner layers structure, which can effectively filter suspended solids, rust, particles and other impurities in fluid.

Installation supports can be customized on request. It suited for use in filtration systems pre-coating with resins.



Features and Benefits:

Stainless steel core and end fittings;

High Surface area;

Up to 70” length, high filtration area, for high dirt holding capacity;

Designed for iron removal in condensate water;

Suitable for use with resins pre-coating techniques;

Glass fiber and Cotton suitable for high temperature applications.

Simple structure, no acid consumption and waste acid regeneration;

Customized installation supports on request.



Applications:

RO pre-filtration, desalination pretreatment;

Power plant condensation water filtration;

Paints, coatings, petrochemical, refining;

Microelectronics, films, fibers, resins.
