Thermal Power Plant String Wound Filter Replace PALL GRAVER Backwashable filter element

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: ISO 9001
Model Number: PHFX
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Customized wooden carton after poly bag. 200pcs per carton.
Delivery Time: 7-12 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000pcs per month
Detail Information
OD: 50mm, Customized Special Diameter ID: 28mm
Length: 70"(1778mm), 60"(1524mm) Filter Medium: PP, Glass Fiber, Cotton
Filtration Rating: 1um, 2um, 4um, 5um, 10um Recommend Flow Rate: 2.5m³/h/70"
MOQ: 1 Piece Delivery Time: 7-12 Days
High Light:

water polishing filter


iron removal filter cartridge

Product Description

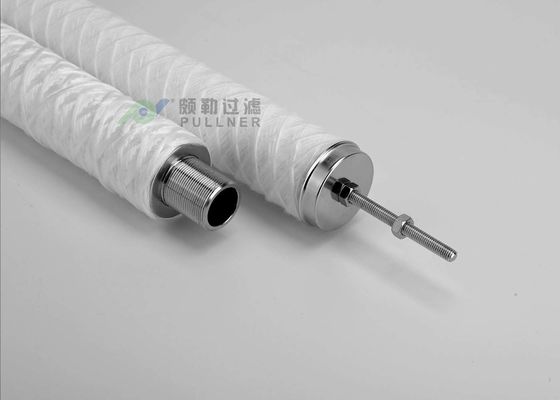

Thermal Power Plant String Wound Filter Replace PALL GRAVER Backwashable Filter Element


General Description

PHFX Series String Wound Filter Cartridge is depth filtration type, with different precision and end connections can meet different conditions. Effectively remove suspended solids in the fluid, particulates, rust and other debris, widely used for iron removal in condensate water treatment.


Performance Specifications



OD 50mm, 60mm
ID 25mm, 28mm
Length 70"(1778mm), 60" (1524mm)


Parts Material

Filter Media Polypropylene, Cotton, Glass Fiber
Support Core Stainless steel 304/316


Filter Performance

Micron 1um, 5um(operating filter), 10um ( start-up filter)
Max. Operating temperature 85℃
Max. Operating differential pressure 2.45Bar
Design Flow Rate 2.9m³/h-3.2m³/h
Connection Type Thread
Connection thread size M33×1.5, M33×2, G1", 1 3/16〃-24 BSW
Screw size M6, M8, M10


Features and Benefits:

Stainless steel core and end fittings;

High Surface area;

Up to 70” length, high filtration area, for high dirt holding capacity;

Designed for iron removal in condensate water;

Suitable for use with resins pre-coating techniques;



* RO pre-filtration, desalination pretreatment;

* Power plant condensation water filtration;

* Paints, coatings, petrochemical, refining;

* Microelectronics, films, fibers, resins.
