Product Details:
|
OD: | 6" | Length: | 20", 40", 60" |
---|---|---|---|
Material: | PP, PET | Filtration Rating: | 1um, 2um, 5um, 10um, 15um, 20um, 30um, 50um, 70um, 100um |
MOQ: | 1 Piece | Delivery Time: | 7 Days |
Highlight: | FDA Electronics Industry High Flow Cartridge,PP Desalination High Flow Filter Cartridge |

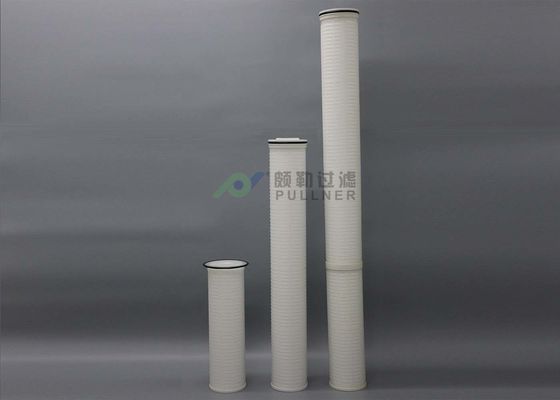

PP Desalination High Flow Filter Cartridge 5 micron FDA Certificate Free Sample
General Description
PHFL series high flow filter cartridge is made of diameter 6"(152mm), single open end, without inner core, pleated type with inside to outside flow direction. All connection use thermal welding. Large diameter, big filtration area provide high flow rate, highly efficient particle filtration in RO pre-filtration system. Widely used in seawater desalination and power plant condensate polishing water RO pre-filtration.
Application:
1. Pharmaceutical industry: Pre-filtration of drugs, distilled water, biological products, various antibiotics, etc.
2. Electronics industry: Filtration of industrial water such as electronics, microelectronics, and semiconductors.
3. Food and beverage: Beer, wine, soft drinks, dairy products, bottled water, fruit wine, juice, syrup, cooking oil, etc
4. Industrial filtration: Energy, coatings, graphite, petrochemical, electroplating, mining, machining, industrial water treatment.
5. Water treatment: Drinking water, commercial water treatment, desalination
Product Features:
* 40” outer cage is one piece, with high strength can withstand one adult weight, ensure big effective filtration area, long life;
* Inside to outside flow direction keeps all of the contamination catched;
* Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance.
* Easy installation save, less cartridge change out help customers save the labor cost;
* Integral support, high strength, high dirt holding capacity, long service life;
* Single cartridge could achieve flow rate 110m3/h;
Performance Specifications
Dimensions(nominal)
OD |
6” (152mm) |
Length |
20"(508mm), 40"(1016mm), 60"(1524mm) |
Material of Construction:
Model |
PP |
PM |
Filter Medium |
Deep Pleated PP |
PP Melt Blown |
Support/Drainage |
Polypropylene |
/ |
End Caps |
Glass Fiber Reinforced Polypropylene |
Glass Fiber Reinforced Polypropylene |
Seals Material |
NBR, Silicone, EPDM, Viton |
Filter Performance
Micron |
1μm, 5μm, 10μm, 15μm , 20μm, 40μm, 70μm |
Maximum operating temperature: |
82℃ |
Maximum operating differential pressure |
3.44bar@82℃ |
Suggestion pressure for filter replacement |
2.5Bar@20℃ |
Max. flow rate |
40": 70m3/h |
60": 110m3/h |
|
Filtration direction |
Inside to outside |
