Product Details:
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA
Model Number: PHFL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export standard carton box after poly bag. 4pcs per carton.
Delivery Time: 3-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs per week

Single Open 1 Micron Amine Beta5000 High Flow Filter Cartridge

Description
Model: PHFL High Flow Filter Cartridge Diameter: 6" (152.4mm)
Material: PP Filtration Micron: 1um~200um
Length: 20"(508mm), 40"(1016mm), 60"(1524mm) Flow Rate: 60m³/h
Filtration Area: 6.4㎡ Maximum Operating Temperature: 82℃
Maximum Operating Differential Pressure: 3.5bar@21℃ (Inside To Outside) Suggestion Pressure For Filter Replacement: 2.5 Bar @ 20℃
High Light:

Beta5000 High Flow Filter Cartridge

,

Beta5000 water filter replacement cartridges

,

Amine High Flow Filter Cartridge

 1 micron Nomonal OD 152.4mm Length 40" Beta5000 PP Pleated High Flow Filter Cartridge for Amine Filtration



General information

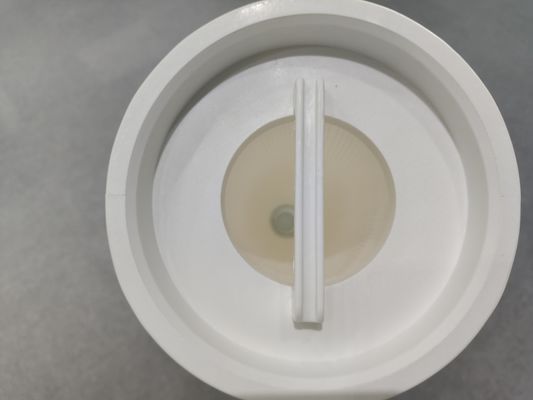

High flow filter cartridge adopts 6" (152.4mm) large diameter structure with single open end. The filter body is divided into two types: PP pleated and melt blown. All connection use thermal welding, no any adhesive, has wide Chemical compatibility, can be applied to food and beverage filtration.



Performance Specifications

Material Filter Medium Polypropylene
Center Core Reinforced Polypropylene
Dimensions Outside Diameter 65mm, 69mm, 70mm
Length 70"; Customized on request
Connection thread size 1 1/2"-12, M33x1.5; (Customized on request)
Screw size M6, M8, M10, 3/8; (Customized on request)



Filter Performance

Micron 1um, 5um(operating filter), 10um(start-up filter)
Filter area 6.5m²
Max. Operating Temperature 85℃
Max. Operating Differential Pressure 2.8bar, 65℃c



Flow Rate and Filtration Area

Size

(Diameter*Length)

Design Flow

(m3/hr)

Maximum Flow

(m3/hr)

Filtration Area

(㎡)

6"*20" 15 40 2.6
6"*40" 30 80 5.2
6"*60" 45 120 7.8



Single Open 1 Micron Amine Beta5000 High Flow Filter Cartridge 0

Performance comparison

Comparison chart of specific filter element number and corresponding filter footprint.

Single Open 1 Micron Amine Beta5000 High Flow Filter Cartridge 1

                                                                      Factory 6200㎡

  Single Open 1 Micron Amine Beta5000 High Flow Filter Cartridge 2

Single Open 1 Micron Amine Beta5000 High Flow Filter Cartridge 3
