Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA
Model Number: PHFL
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Export standard carton box after poly bag. 4pcs per carton.
Delivery Time: 3-7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs per week
Detail Information
Diameter: 6" (152.4mm) Filtration Area: 6.4㎡
Flow Rate: 60m³/h Filter Media: Polypropylene (PP)
Cage/Core/End Cap: Polypropylene (PP) Efficiency: 99.8%
Filtration Micron: 1um~100um Maximum Operating Temperature: 82℃
Maximum Operating Differential Pressure: 3.5bar@21℃ (Inside To Outside) Length: 20"(508mm), 40"(1016mm), 60"(1524mm)
High Light:

1524mm High Flow Filter Cartridge

,

60inch ro filter cartridge

,

60inch High Flow Filter Cartridge


Product Description

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination

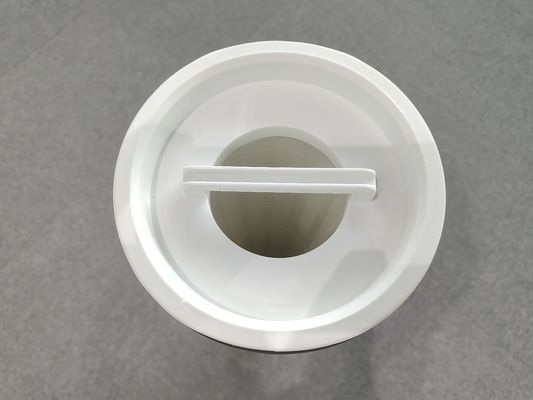

PHFL PP Pleated Filter cartridge series high flow filter cartridge is made of diameter 6"(152mm), single open end, without inner core, pleated type with inside to outside flow direction. All connection use thermal welding. Large diameter, big filtration area provide high flow rate, highly efficient particle filtration in RO pre-filtration system. Widely used in seawater desalination and power plant condensate polishing water RO pre-filtration.

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 0Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 1

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 2





Application:

General Purpose: RO Pre-filtration, all kinds process water purification;

Industrial filtration: Process fluid, process water, condensed water, coolant, wastewater treatment;

Food and Beverage: Process water;

Petrochemical: Various solvents, chilled water, brine filtration;

Power Plant: supplementary water, condensate water, coolant.

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 3Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 4Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 5

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 6Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 7Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 8



Features and Benefits:

* 40” outer cage is one piece, with high strength can withstand one adult weight, ensure big effective filtration area, long life;

* Inside to outside flow direction keeps all of the contamination catched;

* Gradient aperture deep polypropylene fiber filter media, aperture along the fluid motion direction becomes smaller, levels intercept different sizes particles, which has excellent dirt holding capacity and low flow resistance.

* Easy installation save, less cartridge change out help customers save the labor cost;

* Integral support, high strength, high dirt holding capacity, long service life;

* Single cartridge could achieve flow rate 110m3/h;

* Filtration efficiency reach 99.8%;



Performance comparison

Comparison chart of specific filter element number and corresponding filter footprint.

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 9







Dimensions(nominal)

OD

6” (152mm)

Length

20"(508mm), 40"(1016mm), 60"(1524mm)




Material of Construction:

Model

Filter Media

Support/Drainage

End Caps

Seals Material

PP

Pleated depth

Polypropylene

Glass Fiber Reinforced Polypropylene


NBR, Silicone, EPDM, Viton


PP

Melt blown

/

Glass Fiber Reinforced Polypropylene





Flow Characteristics:

Length

(inches)

Design Flow Rate

(m3/hr)

Max. Flow Rate

(m3/hr)

Filtration Area

(m2)

20" 15 30 3.2
40" 20 60 6.5
60" 45 90 9.5





Retention efficiency Table

Scope of particles Filtration Efficiency
0.8μm 1.0μm 2.0μm 3.0μm 5.0μm 10μm 20μm
≥1μm 99.89% 99.82% 95.00% 86.97% 79.86% 42.23% 24.38%
≥2μm 99.97% 99.87% 98.64% 96.84% 90.09% 70.49% 40.09%
≥5μm 100.0% 99.93% 99.90% 99.89% 99.89% 99.89% 99.89%
≥8μm 100.0% 100.0% 99.97% 99.20% 98.88% 95.25% 82.42%
≥10μm 100.0% 100.0% 100.0% 99.58% 98.39% 98.18% 89.42%
≥12μm 100.0% 100.0% 100.0% 99.78% 99.57% 98.76% 97.41%
≥25μm 100.0% 100.0% 100.0% 100.0% 100.0% 99.34% 99.14%





High Flow PP Water Filter Cartridge Details:

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 10Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 11Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 12

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 13Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 14





Pullner Production process:

Our production strictly follow these procedures: Pleating → Seam welding → Assembly → Trimming → Welding → Finished products → Packaging

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 15



Clean Room:

In the purification workshop, workers need to wear purification clothes, purification shoes, masks, hats and gloves. The purification workshop has high requirements on the production environment, which can ensure the cleanliness and safety of the products, and can meet the filtration requirements of food and beverage, biopharmaceutical and other industries.

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 16Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 17

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 18Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 19





Pullner laboratory:

It is equipped with varieties of test facilities: Aperture distribution instrument, water single-pass test bench, scanning electro microscope, bacterial challenge lab, online particle detector, diaphragm test bench, air permeability tester, filter cartridge integrity tester, test trolley for simulating field conditions, etc. With several test experts, quickly provide customers varies conditions solutions.



Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 20

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 21Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 22Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 23

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 24Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 25Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 26







Pullner Certificates:

Our plant has ISO19001, ISO14001, ISO45001 certificates, we are high-tech enterprise with multiple patent certificates. Approval vendor of Saudi Aramco.



Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 27

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 28Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 29Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 30

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 31Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 32Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 33





Global Customers



Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 34







Pullner Exhibitions:

We have participated in professional exhibitions in the filtration industry all the year round. At the exhibition, we not only met new customers and their product needs, but also gained more understanding of the latest filtration technology and products. For us to improve existing products and develop new Products provide more professional information.

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 35

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 36

Pullner Replacement PP Pleated Filter cartridge For Sea Water Desalination 37
