Product Details:
|
| PHFM: | High Flow Water Filter | Micron: | 1um, 2um, 5um, 10um, 15um, 20um, 30um, 50um, 70um, 100um |
|---|---|---|---|
| Medium: | PP, PET, Glass Fiber | Diameter: | 160mm |
| Length: | 20"(508mm), 40"(1016mm), 60"(1524mm) | Flow Rate: | 60m³/h |
| Maximum Operating Temperature: | 82℃ | Filter Area: | 6.6㎡ |
| Efficiency: | 99.8% | Maximum Operating Differential Pressure: | 3.5bar@21℃ |
| Highlight: | Desalination High Flow Filter Cartridge,Desalination polypropylene cartridge,1micron High Flow Filter Cartridge |
||

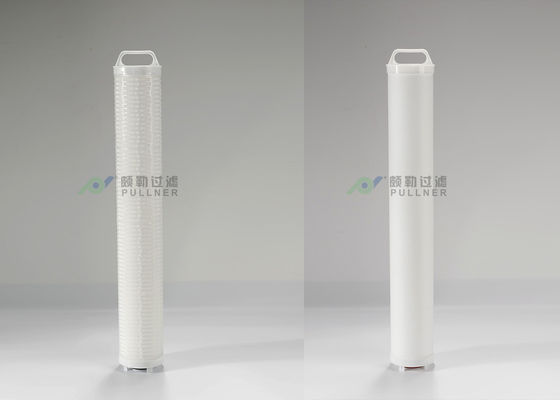

Seawater Desalination RO 60" PP Pleated High Flow Water Filter 160mm Diameter 1micron Absolute
General information
High flow filter cartridge is made of 160mm large diameter structure with single open end. Use advanced pleat technology, provide bigger filtration area, high flow rate and long service life. All connection use thermal welding, no any adhesive.
Performance comparison
Comparison chart of specific filter element number and corresponding filter footprint
Material Construction
|
Filter Media |
PP: Deep Pleated PP/Melt PP |
FO: Organic Fiber |
GF: Resin Synthetic Glass Fiber |
|
Support/Drainage |
PP |
Organic Fiber |
Polyester |
|
End Cap Material |
Fiberglass Reinforced Polypropylene |
Fiberglass Reinforced Polypropylene |
Fiberglass Reinforced Polypropylene |
Filter Performance
| Micron | 1um, 3um, 5um, 10um, 15um, 20um, 50um, 70um, 100um |
| Max. operating temperature | 82℃ |
| Max. operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
|
6"*20" |
15 |
40 |
2.6 |
|
6"*40" |
30 |
80 |
5.2 |
|
6"*60" |
45 |
120 |
7.8 |
