Product Details:
|
| PHFK: | 1 Micron High Flow Filter Element | Material: | PP |
|---|---|---|---|
| OD: | 6" (152.4mm) | Filtration Micron: | 1um, 2um, 5um, 10um, 15um, 20um, 30um, 50um, 70um, 100um |
| Filter Area: | 6.6㎡ | Filtration Efficiency: | Beta 5000 |
| Length: | 40"(1016mm) | Flow Rate: | 35m³/hr |
| Maximum Operating Differential Pressure: | 3.5bar@21℃ | Maximum Operating Temperature: | 82℃ |
| High Light: | beta5000 1 micron absolute filter,beta5000 pleated water filters,polypropylene 1 micron absolute filter |
||

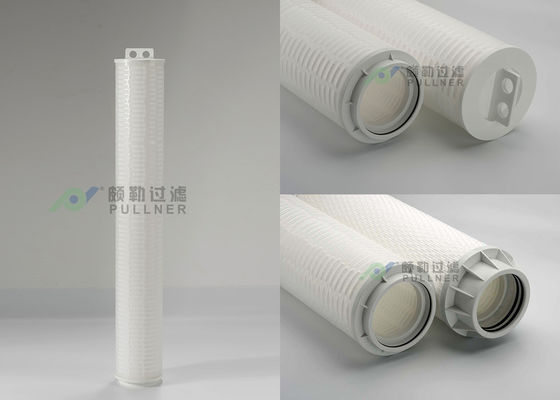

Industrial Process Water Beta5000 1 Micron 6"(152.4mm) Diameter 40" High Flow Filter Element
General information
PHFK series high flow filter cartridge use 6" (152.4mm) diameter, advanced pleat technology combined with thermal welding, has widely Chemical compatibility. The connection has two types: single O-ring and double O-ring for different housing installation.
Material Construction
| Filter Media | PP: Deep Pleated PP/Melt PP | FO: Organic Fiber | GF: Resin Synthetic Glass Fiber |
| Support/Drainage | PP | Organic Fiber | Polyester |
| End Cap Material | Fiberglass Reinforced Polypropylene | Fiberglass Reinforced Polypropylene | Fiberglass Reinforced Polypropylene |
Filter Performance
| Micron | 1um, 3um, 5um, 10um, 15um, 20um, 50um, 70um, 100um |
| Max. operating temperature | 82℃ |
| Max. operating differential pressure | 3.44bar@82℃ |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
Performance comparison
Comparison chart of specific filter element number and corresponding filter footprint
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
