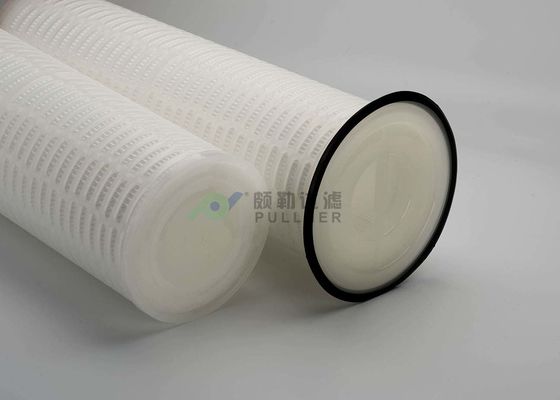

Contamination Free PP FDA 154gpm High Flow Filter Cartridge

Basic Information
Place of Origin: Shanghai China
Brand Name: PULLNER
Certification: FDA
Model Number: PHBG
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box after poly bag. 4pcs per carton
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1000pcs per week
Detail Information
PHBG: Bag Filter Replacement High Flow Cartridge Filter OD: 152mm
Removal Rating: 1um, 2um, 5um, 10um, 15um, 20um, 30um, 50um, 70um, 100um Medium: PP, PET, Glass Fiber
Length: 20"(508mm), 40"(1016mm), 60"(1524mm) Filter Area: 6.6㎡
Flow Rate: 35m³/h Max. Operating Temperature: 82℃
Filtration Efficiency: High Max. Operating Differential Pressure: 3.5bar@21℃
High Light:

154gpm High Flow Filter Cartridge

,

FDA High Flow Filter Cartridge

,

154gpm pp water filter cartridge


Product Description

35m³/Hr 5 Micron Size 1 Size 2 Bag Filter Replacement High Flow Cartridge Filter

General information
PLBG series bag filter pleated high flow filter cartridge is designed to replace Size 1 and Size 2 bag filters. PP pleated type provides a cost-effective alternative with higher removal efficiencies over standard bag media configurations. It’s suitable for existing bag filter vessels, no need add any hardware change. Long service life, save filtration cost.



Material Construction

Filter Media Depth Polypropylene (PP)
Support/Drainage Polypropylene (PP)
Cage/Core/End Cap Glass Fiber reinforced Polypropylene (PP)



Performance

Filtration Micron 1μm, 2μm, 5μm, 10μm, 20μm, 40μm, 70μm, 90μm,
Maximum Operating Differential Pressure 3.5bar / 21°C(Inside to Outside)
Recommend Change-out Differential Pressure 1.0 bar / 21°C(Inside to Outside)
Hot Water Sterilization 77-82℃/30min,
Maximum Operating Temperature 82°C



Flow Rate and Filtration Area

Size

Design Flow Rate

(m3/hr)

Max Flow Rate

(m3/hr)

Filtration Area

(m2)

1# 10 25 1.6
2# 20 50 3.4



Ordering Information

    PLBG                                 0100                                                     01                                   E

Series Micron Length Seal Material
  0100 =1.0μm 2000 =20μm 01(1#) =330mm E =EPDM
PLBG 0300 =3.0μm 4000 =40μm 02(2#) =660mm S =Silicone
  0500 =5.0μm 7000 =70μm Customization   V =Viton
  1000 =10μm 9000 =90μm

 Contamination Free PP FDA 154gpm High Flow Filter Cartridge 0
Contamination Free PP FDA 154gpm High Flow Filter Cartridge 1
Contamination Free PP FDA 154gpm High Flow Filter Cartridge 2

Contamination Free PP FDA 154gpm High Flow Filter Cartridge 3
