Product Details:
|
| Model: | PHFL High Flow Filter Cartridge | OUT Diameter: | 6" (152.4mm) |
|---|---|---|---|
| Material: | PP | Filtration Micron: | 1um~200um |
| Length: | 20"(508mm), 40"(1016mm), 60"(1524mm) | Flow Rate: | 60m³/h |
| Filtration Area: | 6.4㎡ | Maximum Operating Temperature: | 82℃ |
| Maximum Operating Differential Pressure: | 3.5bar@21℃ (Inside To Outside) | Suggestion Pressure For Filter Replacement: | 2.5 Bar @ 20℃ |
| INNER DIAMETER: | 70mm | ||
| Highlight: | single open filter cartridge,Beta 5000 filter cartridge 1 micron,PHFL filter cartridge 1 micron |
||

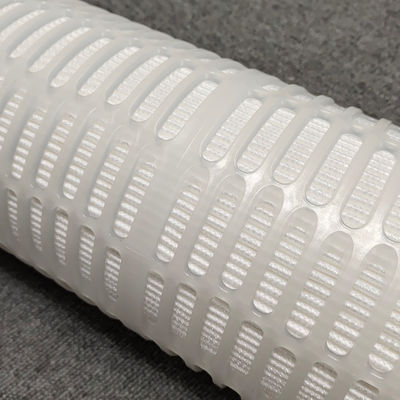

1 micron Nomonal OD 152.4mm Length 40" Beta5000 PP Pleated High Flow Filter Cartridge for Amine Filtration
General information
High flow filter cartridge adopts 6" (152.4mm) large diameter structure with single open end. The filter body is divided into two types: PP pleated and melt blown. All connection use thermal welding, no any adhesive, has wide Chemical compatibility, can be applied to food and beverage filtration.
Filter Performance
| Micron | 1um, 5um(operating filter), 10um(start-up filter) |
| Filter area | 6.5m² |
| Max. Operating Temperature | 85℃ |
| Max. Operating Differential Pressure | 2.8bar, 65℃ |
Performance Specifications
| Material | Filter Medium | Polypropylene |
| Center Core | Reinforced Polypropylene | |
| Dimensions | Outside Diameter | 65mm, 69mm, 70mm |
| Length | 70"; Customized on request | |
| Connection thread size | 1 1/2"-12, M33x1.5; (Customized on request) | |
| Screw size | M6, M8, M10, 3/8; (Customized on request) |
Flow Rate and Filtration Area
|
Size (Diameter*Length) |
Design Flow (m3/hr) |
Maximum Flow (m3/hr) |
Filtration Area (㎡) |
| 6"*20" | 15 | 40 | 2.6 |
| 6"*40" | 30 | 80 | 5.2 |
| 6"*60" | 45 | 120 | 7.8 |
Performance comparison
Comparison chart of specific filter element number and corresponding filter footprint.
